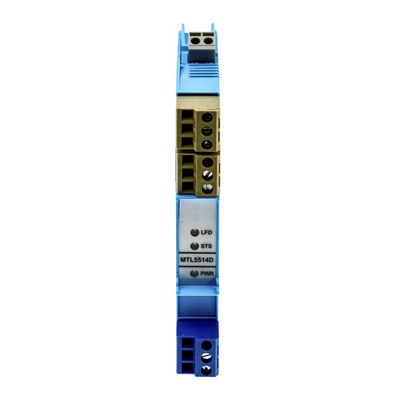

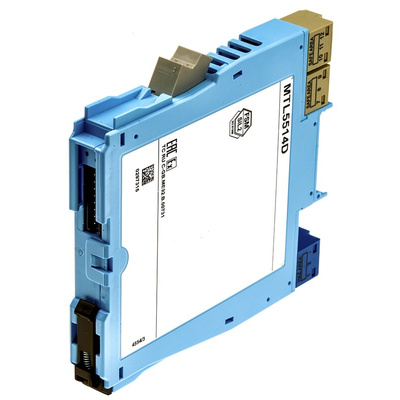

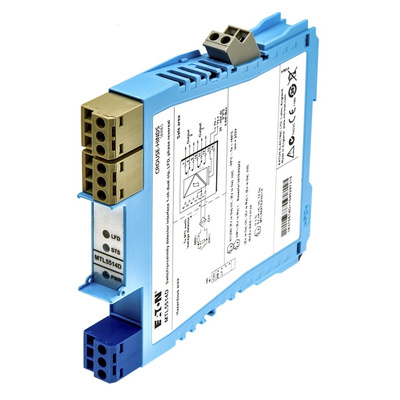

MTL5514D, Eaton MTL Series Signal Conditioner, Voltage Input, Relay Output, 40 V dc, 230V ac Supply

Eaton MTL Signal Conditioner for Proximity Switch, 7 to 9V DC Input, 1.2 to 2.1mA Output - MTL5514D

Send easily readable information to your control equipment with this signal conditioner from Eaton. It allows two safe-area relay loads to be controlled by a proximity detector or switch located in a hazardous area. This type of unit is frequently used in chemical and petrochemical applications. Low power dissipation means it's compatible with a lower voltage, for efficient energy consumption. To ensure greater electrical safety, a line fault detection facility is able to quickly pick up open or short circuits in your field wiring. If an input line fault is found, the device automatically de-energises your output relays without manual intervention.

Features & Benefits

• Quick and simple installation on a standard DIN rail
• Operating temperature range between -20°C and +60°C for safe industrial use
• Isolated ports to reduce the risk of electrical shock to operators

How do I know when my outputs are on or if a fault is detected?

Your outputs are energised if the yellow light in the LED display is lit up. When the unit detects a line fault, you'll see a red light. A green light lets you know when the signal conditioner is powered on.

Note

Eaton formerly known as MTL
