SDRplay RSPduo Dual Tuner 14-bit SDR Radio Board for Educational Application, Industrial Application, Scientific

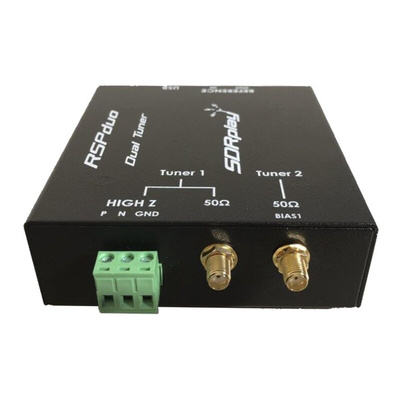

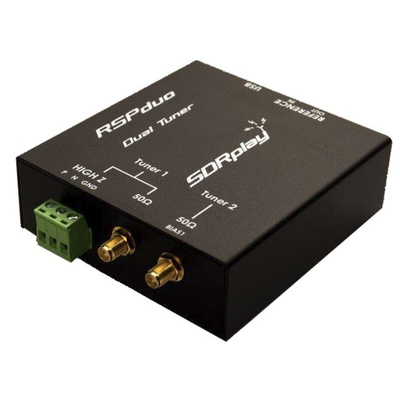

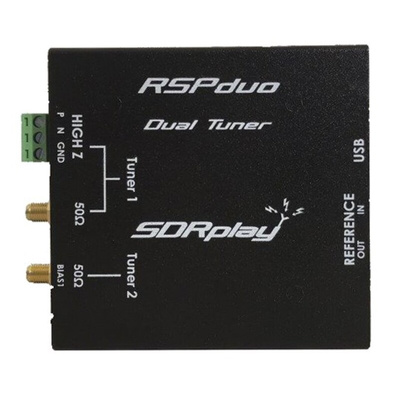

SDRplay Dual Tuner Radio Board

The SDRplay Dual Tuner Radio Board is a dual-tuner wideband full-featured 14-bit SDR which covers the entire RF spectrum from 1kHz to 2GHz giving 10MHz of spectrum visibility. Combined with the power of SDRuno software for Windows, you can simultaneously monitor two completely separate 2MHz bands of spectrum anywhere between 1kHz and 2GHz. The RSPduo provides three software selectable antenna inputs and clocking features ideally suited to industrial, scientific and educational applications. A documented API allows developers to create new demodulators or applications around the platform.

Features and Benefits

11 high-selectivity, built-in front-end preselection filters on both the 2 SMA antenna ports
Covers all frequencies from 1kHz through VLF, LF, MW, HF, VHF, UHF and L-band to 2GHz, with no gaps
External clock input and output enables easy synchronisation to multiple RSPs or external reference clock
External clock input and output for synchronisation purposes, or connection to GPS reference clock
High impedance antenna port (1kHz to 30MHz) with selectable MW notch filter and choice of 2 pre-selection filters
Ideal for cross band full-duplex reception, e. G. HF + VHF or VHF + UHF
Powers over the USB cable with a simple type B socket
Receive, monitor and record up to 10MHz of the spectrum at a time (single tuner mode)
Simultaneous Dump1090 and VHF ATC reception
Simultaneous monitoring and recording of 2 ISM bands
Software selectable AM/FM and DAB broadcast band notch filters for the 2 SMA antenna (1kHz to 2GHz) antenna ports
Software selectable multi-level Low Noise Preamplifier

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
