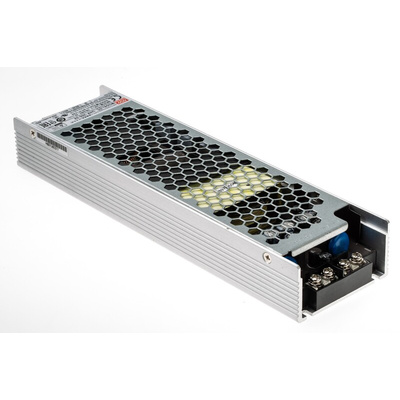

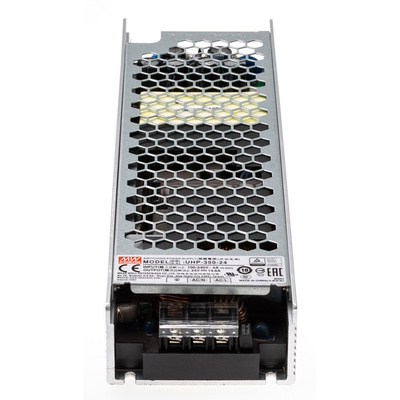

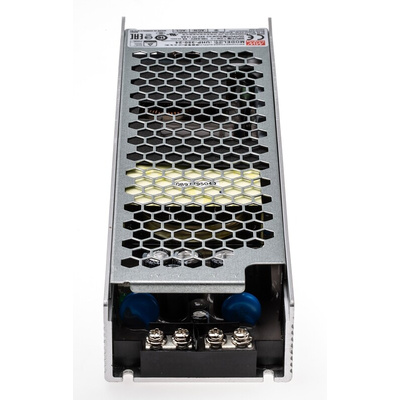

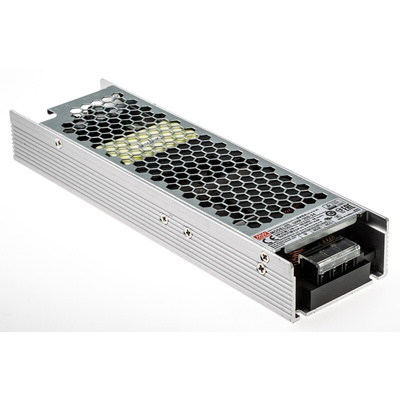

MEAN WELL Switching Power Supply, UHP-350-24, 24V dc, 14.6A, 350.4W, 1 Output, 127 → 370 V dc, 90 → 264 V, Источник питания

Mean Well Switch Mode Power Supply

The Mean Well UHP-350 series 350.4W single output AC to DC embedded switch mode power supply has an output current rating of 14.6A at 24VDC. It has a universal input supply voltage rating from 90VAC to 264VAC and 127VDC to 370VDC. It has complete protection functions and 5G anti-vibration capability.

Features and Benefits

Slim and low profile (31mm)
Fanless design, 350W convection
Withstand 300VAC surge input for 5 seconds
Build-in active PFC function
Peak load capability of 150% (100ms)
Working temperature ranging between -30°C and 70°C
Short circuit protection
Overload protection
Overvoltage and over temperature protection
DC OK active signal and redundant function
Operating altitude up to 5000m
LED indicator for power ON

Applications

Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipment, or apparatus
Household appliances
LED display application

Certifications

EN55032
GB9254
Class B
EN55014
EN61000-3-2,-3
EAC TP TC 020
EN61000-4-2,3,4,5,6,8,11
EN61000-6-2 (EN50082-2)
Criterial A
EAC TP TC 020

UHP-350-24 Datasheet
