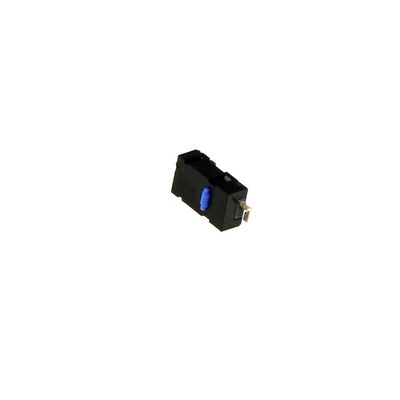

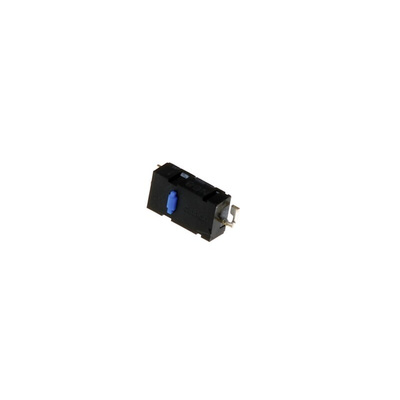

D2LS-21, Omron Button Subminiature Micro Switch, Surface Mount Terminal, 1 mA, SPST, IP40, Микропереключатель

Omron Micro Switch

The Omron single pole single throw (SPST) normally open microswitch is also known as a snap action switch. It operates by using a spring-loaded lever to open and close a set of internal contacts inside the unit. It has a simulated pin plunger lever actuator. It requires a 61gf operating force to energize the spring. The operating current rating is 1mA. It has an embossed taping package (transporting and storing electronic components) for automatic handling.

Features and Benefits

• Body is made from silver alloy material
• Clear click feeling
• Compact design and solder terminal
• Durability up to 5,000,000 operations
• High-performance
• Low cost
• Operating temperature ranges between -25°C and 85°C
• Snap-on action mechanism
• Surface mount type
• Voltage rating is 6VDC

Applications

• Automotive
• Electronics equipment
• Industry

Certifications

• IP40 rating

Datasheet
