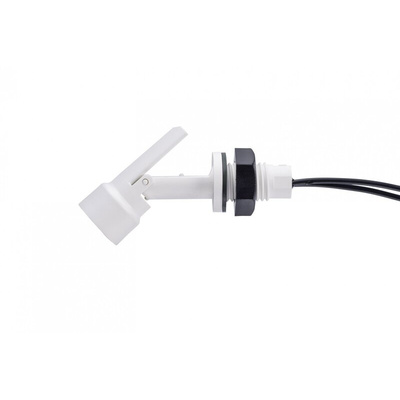

LLF48H100RF, Sensata / Cynergy3 LLF40 Series Horizontal Internal Polypropylene Float Switch, 1m Cable, SPNO, 300V ac Max, 300V dc Max

1748367
Номер производителя: LLF48H100RFПроизводитель: Sensata / Cynergy3
Цена за шт.
12047.10 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Sensata Cynergy3 Float Switch, Horizontal Internal Mounting Type, 1m Cable Length - LLF40 Series - LLF48H100RF

Manage liquid levels in your tanks with this Sensata Cynergy3 horizontal internal float switch. Its polypropylene body is resistant to acids, oils, detergents and other chemicals, making it ideal for use in demanding industrial environments. The gasket is made of nitrile for resistance to chemicals and wear, giving you a durable, leakproof seal for enhanced efficiency. You'll find this float switch used in food and beverage production as well as commercial appliances.

Features & Benefits

• Wide operating temperature range between -20°C and +100°C for use in demanding conditions
• Maximum switching current of 1A for energy-efficient operation
• Switch action can be reversed by rotating the float by 180° for versatility
• PVC cable sheath for protection against wear and moisture

When should I use a horizontal internal float switch?

A horizontal internal float switch like this one is designed for mounting through the side wall on the inside of the tank. This makes it a convenient choice when there's no top or bottom access on the outside of the tank.

Техническая спецификация
pdfLLF40 Series Float Switch Datasheet
pdfSelection Guide - Level Sensors & Switches
Встречающиеся стандарты:
UL
Выходное переключение:
SPNO
Кабель - длина:
Корпус - материал:
Полипропилен
Максимальное напряжение переменного тока:
300В
Максимальное напряжение постоянного тока:
300В
Максимальный ток:
1 A
Номинал тока:
1 A
Рабочая температура - максимальная:
+100°C
Рабочая температура - минимальная:
-20°C
Серия:
LLF40
Тип монтажа:
Horizontal Internal
Уплотняющий материал:
Нитрил
