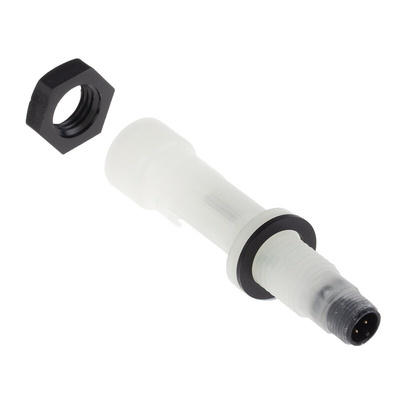

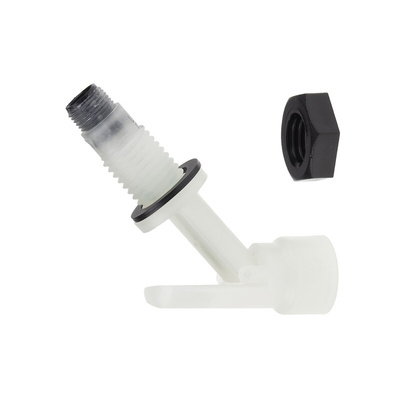

LLF44HFP, Sensata / Cynergy3 LLF40 Series Horizontal Internal Polypropylene Float Switch, Float, SPNO, 300V ac Max, 300V dc Max

Sensata Cynergy3 Horizontal Internal Float Switch, 1A, 300V - LLF40 Series - LLF44HFP

This float switch from Sensata Cynergy3 helps you to monitor the liquid levels in an industrial tank. The device is often used when filling a tank to prevent overflow, or when emptying a tank so you know when levels are sufficiently low. This switch has a magnetic floating component that flicks the switch when liquid levels rise or fall past a certain point. As it's a horizontal switch, it's mounted internally on the side of a tank, making it useful for work areas with no access to the top or bottom. Its maximum current capacity of 1A makes it suitable for use with low-voltage currents in applications such as vending machines.

Features & Benefits

• Durable polypropylene (PP) body material for excellent resistance to wear
• Nitrile butadiene rubber (NBR) gasket material prevents leaks and insulates the switch to ensure reliable performance
• M12 connector for ease of installation

Can I use this float switch in high-heat applications?

Thanks to its broad operating temperature range of -20°C to +100°C, it's a good choice for use in both cold and hot liquids.

LLF40 Series Float Switch Datasheet

Brochure - Level Sensors & Float Switches

Selection Guide - Level Sensors & Switches
