LLF46YFP, Sensata / Cynergy3 LLF40 Series Horizontal Internal Polyphenylene Sulfide Float Switch, SPNO, 240V ac Max, 120V dc Max

Sensata Cynergy3 Float Switch, Horizontal Internal Mounting Type, 120V DC Maximum Switching Voltage - LLF40 Series - LLF46YFP

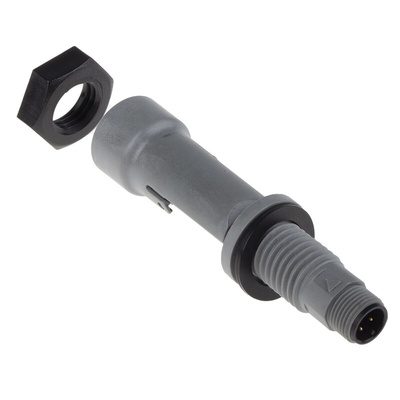

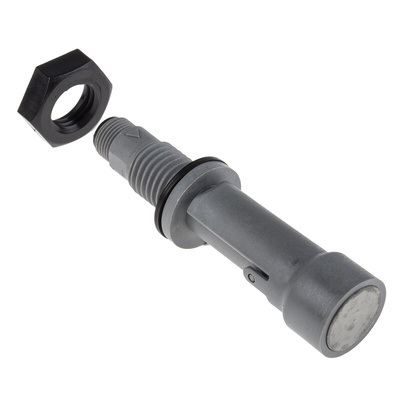

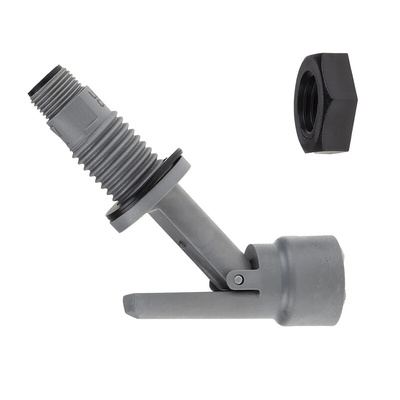

Use this Sensata Cynergy3 horizontal internal float switch for regulating liquid levels in closed tanks. It's designed for mounting on the side of your tank, so it's a good choice for tanks where top and bottom access is limited. The must-close level of 1mm and the must-open level of 10mm makes it suitable for monitoring small volumes of liquid. You can use this float switch in systems like evaporating units or commercial washing machines.

Features & Benefits

• PPS body is resistant to chemicals and wear for use in heavy-duty applications
• M12 connector for a simple connection to your circuit
• Nitrile gasket helps prevent leaks for enhanced system efficiency
• Maximum switching voltage of 240V AC and 120V DC for use in low-power applications

How does a float switch work?

A float switch turns on a pump to refill the tank when liquid levels reach a certain minimum level. It turns off the pump when the liquid reaches a preset maximum volume. This helps to prevent overfilling and underfilling.
