LLF76Y100RN, Sensata / Cynergy3 LLF 70 Series Horizontal External Polyphenylene Sulfide Float Switch, 1m Cable, SPNO, 240V ac Max,

Sensata Cynergy3 Float Switch, Horizontal External Mounting Type, 600mA Maximum Switching Current - LLF70 Series - LLF76Y100RN

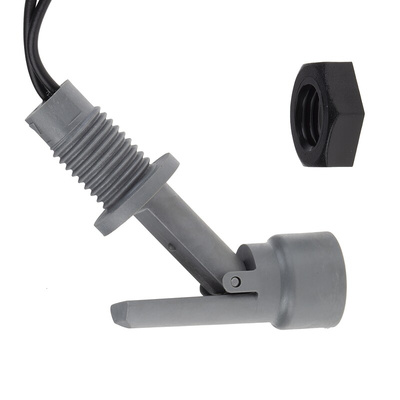

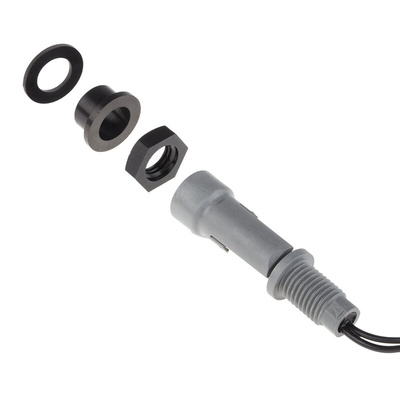

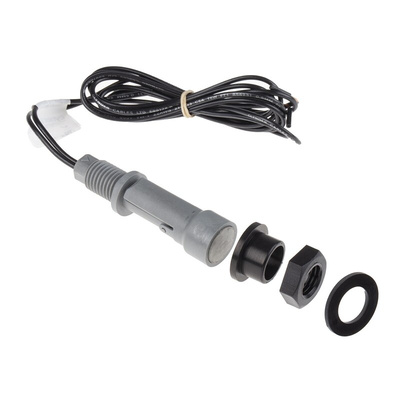

Reliably regulate liquid levels in tanks with this Sensata Cynergy3 horizontal external float switch. It's designed for mounting through a tank wall from the outside, making it ideal for tanks with no interior access. The nitrile gasket is resistant to wear and chemicals, so it will provide a durable seal to prevent leaks. The PPS body is resistant to abrasion and chemicals for use in demanding applications. You can use this float switch in vending machines, auxiliary tanks and commercial dishwashers.

Features & Benefits

• Cable length of 1m for a flexible electrical connection
• PVC cable sheath for protection against abrasion and moisture
• Maximum switching voltage of 240V AC and 120V DC for use in low-power applications
• Switch action can be reversed by inverting the float for versatility
• Maximum switching current of 600mA for energy efficiency

At what levels does this switch open and close?

This switch has a must-close level of 1mm and a must-open level of 10mm, so it's a good choice for applications where you need to monitor low volumes of liquid.
