LLF77Y100GN, Sensata / Cynergy3 LLF 70 Series Horizontal External Polyvinylidene Fluoride Float Switch, Float, 1m Cable, SPNO, 240V

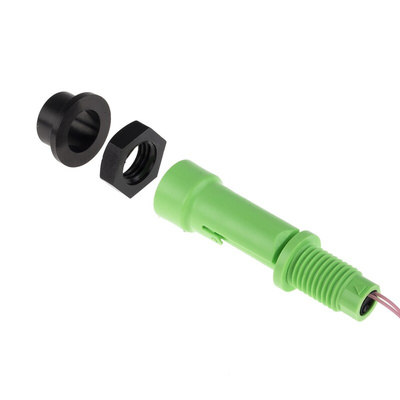

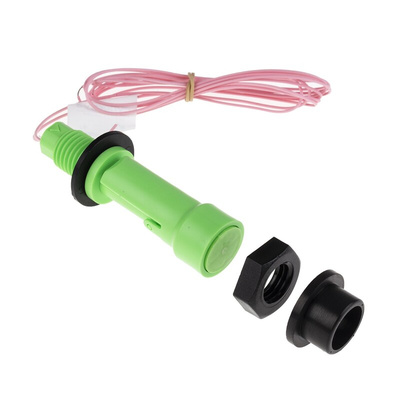

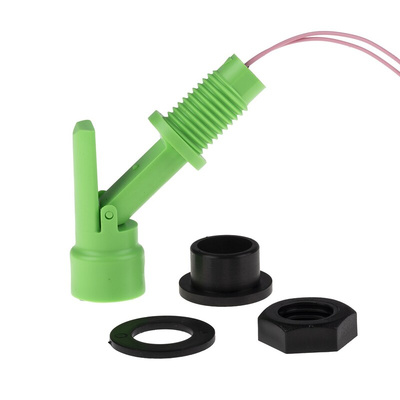

Cynergy3 External Low Level Float Switch

The Cynergy3 external low-level float switch has a polyvinylidene fluoride body. This device is particularly suitable for detecting low-levels of liquids in the bottom of the tanks, containers and lower SG liquids. The switch action may be reversed by mounting the device with the float to move upwards away from the body, instead of the more normal downwards direction.

Features and Benefits

• Class leading compact design
• Compression seal fitting

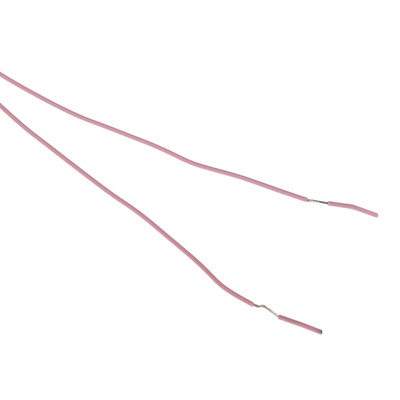

• Flying lead
• Power capacity 25VA
• Suitable for low specific gravity liquids (0.7 S. G.)
• Very low level sensing

Applications

• Auxiliary tanks on vehicles
• Commercial dish washers
• Vending machines

Certifications

• UL approved

LLF70 Series Datasheet
