Teledyne LeCroy HVD3000A Series HVD3206A Oscilloscope Probe, Differential Type, 120MHz, 1:50, 1:500, Щупы для осциллографа

Teledyne LeCroy HVD3000A Series Probes

Teledyne LeCroy’s HVD3206A series of high voltage differential probes cover the fullest range of applications, from 120/240 V switch-mode power supplies through 600 V class and 1.5 kV electrical apparatus. The 1% gain accuracy coupled with exceptional common-mode rejection ratio provides an accurate and versatile probe suitable for use with a wide range of oscilloscopes.

Features and Benefits

• Exceptional common-mode rejection ratio (CMRR) across a broad frequency range


• 1% gain accuracy


• High offset capability at both high and low attenuation


• AC and DC coupling


• ProBus active probe interface with automatic scaling


• AutoZero with auto disconnect switch


• Wide oscilloscope compatibility

Applications

• Wide oscilloscope compatibility


• Applications


• Automotive


• Power Applications


• Motor Drive Development


• Product Design Applications

• 174-8871 - 2kV, 120 MHz High Voltage Differential Probe with 2m cable and Auto Zero Disconnect

• 174-8872 - 2kV, 80 MHz High Voltage Differential Probe with 6m cable and Auto Zero Disconnect

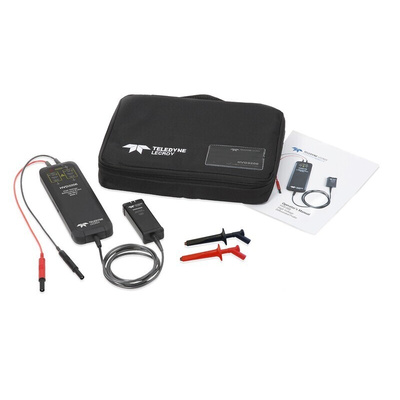

Supplied with

174-8871 and 174-8872 are supplied with a pair of 2kV Plunger Alligator Clips
