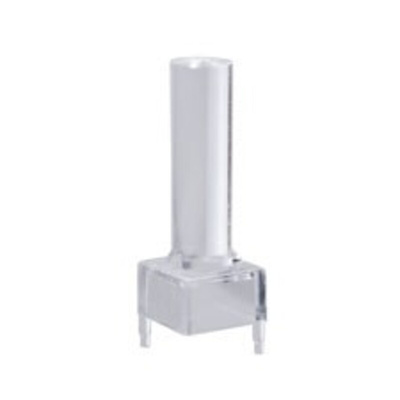

VLP-550-R Bivar, PCB Mounted LED Light Pipe, Clear Round Lens, Оптический волновод

Bivar VLP Series LED Light Pipes

The VLP series from Bivar are a family of vertical board mount LED light pipes. These round light pipes are available in a range of different lengths with either a flat or domed top. VLP light pipes are designed for use with surface mount (SMD) LEDs.

Features of the VLP light pipes:
Rigid board mount light pipes for surface mount LEDs
3mm diameter face
4.7mm square footprint
Clear Polycarbonate material

Light Pipe, Rigid, Vertical, Board Mount, SMD LED, .550 in., Round Face

Material: Polycarbonate Clear
Round Face Lens
Use with Standard SM0603 through SM0805 Surface Mount LEDs
Protects Circuit from ESD

LED Light Pipes, Bivar

Bivar's range of LED light pipes include both rigid and flexible types. Their light pipes enable the user to move light from the LED source to a desired destination over a range of distances up to 100m. Bivar's LED light pipes are ideal for design flexibility.

Datasheet
