3 V, 4.4 V RGB LED Super Flux Through Hole, Bivar Orca R R50RGB-5-0080, Светодиод

Bivar Orca R Series Super Flux LEDs

The Orca R series, from Bivar, are through hole LEDs in 4-pin Super Flux packages. There are both dome and flat top options within the Orca R series of LEDs. Their compact and low profile design coupled with a high intensity output enables the use to reduce the number of LEDs required for an enhanced light output. Available in a variety of colour options, including RGB, this family of LEDs have a clear lens type.
High luminous intensity LED lamps for applications including: automotive exterior lighting, decorative interior or exterior lighting, speciality stage lighting and electronic signs.

Rugged four leaded 7.6mm square industry standard package
High luminous intensity
High efficiency output
Low power consumption

LED, Through Hole, 7.6mm x 7.6mm Tri-Color, Red (617nm, 3000mcd) / Green (515nm, 4000mcd) / Blue (460nm, 1000mcd), Water Clear Lens, 80 Deg Viewing Angle

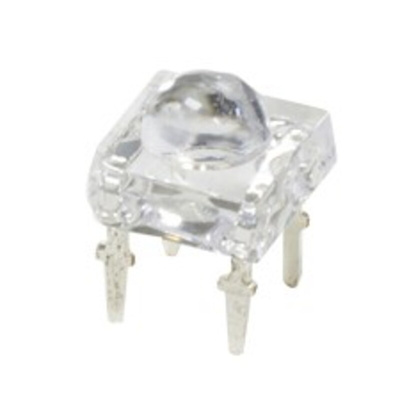

4-Pin Super Flux Red, Green, and Blue LED Lamp with 5mm Dome Lens
Easy install by automatic insertion
Low Power Consumption with High Intensity Output
Uniform Light Output

Visible Light LEDs, Bivar

Datasheet
