Teledyne LeCroy DCS025 Calibration Source, For Use With AP015, CP030, CP030A, CP031, CP031A, CP150, CP500

Teledyne LeCroy Deskew Calibration Source

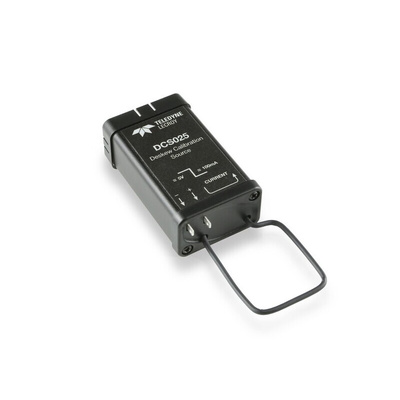

The LeCroy Deskew calibration source generates time-aligned voltage and current pulses for precise deskew of voltage and current probes. It is critical for measurements in which small propagation delay differences between probes can have a large impact on the calculated measurement. For example, instantaneous power semiconductor device loss measurements.

Features and Benefits

• Signal fall time(80-20%) is 10ns


• Only 1 ns static skew


• Operating temperature ranges between 0 and 50 °C


• Signal fall time and static skew is 10ns and 1ns respectively


• Time-aligned output signals of 5V and 100mA


• Loop size compatible with 30A, 150A and 500A current probes


• Compatible with standard and high-sensitivity current probes

Applications

• Science and engineering


• Medicine


• Automotive industry


• General-purpose use in laboratory


• Telecom industry

DCS025 Datasheet
