2910537, Phoenix Contact PLC-RPT Series Interface Relay, DIN Rail Mount, 24V dc Coil, DPDT, 1-Pole

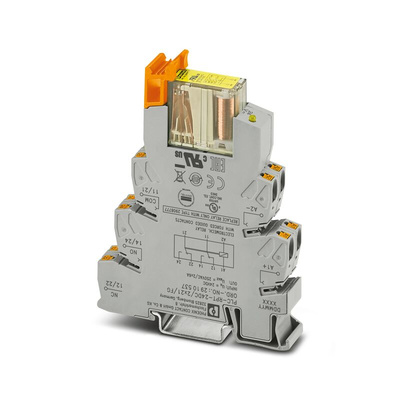

Phoenix Contact Force-Guided Relay Module, Push-in Terminal, DPDT - PLC-RPT- 24DC/2X21/FG - 2910537

This force-guided relay from Phoenix Contact is an electromechanical switching device. It's designed for the safe monitoring of contacts within circuits and makes it impossible for all circuits to be closed at the same time. The relay is suitable for DIN rail mounting, so it's simple to install.
The unit's push-in connection allows for safe and easy wiring that's vibration-resistant, so it won't accidentally come loose. You can easily attach conductors without the need for special tools. The slim and compact design takes up minimal space on a circuit board for maximum packing efficiency, while a low operating temperature ensures it won't overheat. A component like this is typically used in high-demand applications in machine building.

• Coil voltage of 24 V DC
• Input current of 30 mA
• Life of 10^7 mechanical cycles
• Switching current of 10 mA
• DPDT (double pole, double throw) contact configuration
• Silver alloy contact material
• 1 pole
• IP20 (ingress protection) rating for protection against solid objects
• Dimensions of 14 (length) x 104 (depth) x 80 mm (height)
• Operating temperature range of -20°C to +60°C
