2909528, Phoenix Contact PLC-RPT-24DC/21/EX Series Interface Relay, DIN Rail Mount, 24V dc Coil, SPDT, 1-Pole

Phoenix PLC-RPT Series Push In Contact

The Phoenix PLC-RPT Series of relay modules features terminal blocks with push-in connection and plug-in miniature relay, suitable for DIN-rail mounting.

Features and Benefits

• With the use of a v8 adapter, this relay module offers efficient connection to system cabling


• The module offers safe isolation between the coil and contact


• Functional plug-in bridges


• Operating temperature range of -40 ºC to 60 ºC

What is a relay module used for?

A relay is a switch that can be turned on and off, determining whether the current can pass through. Relay modules are used to control and protect against emergency conditions in applications such as modern power, large radio-electronic, electrophysical and X-ray installations.

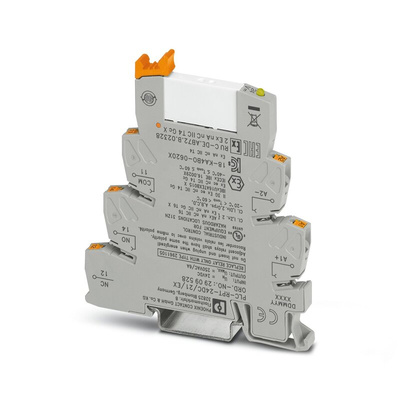

Phoenix Contact Interface Relay Module, Push-In, SPDT - PLC-RPT-24DC/21/EX - 2909528

Use this relay from Phoenix Contact to open and close electrical circuits in hazardous areas. It's specifically designed to let you safely disconnect and switch signals in potentially explosive environments, such as chemical works.
The unit has a low operating temperature, so it can be closely assembled with other relays without the risk of overheating. Its push-in technology means you can quickly plug in wires without needing specialist tools. A freewheeling diode protects the unit from damage in the event of an abrupt reduction in the circuit current.
You can visually check the working function of this relay thanks to its yellow LED (light-emitting diode). This unit clips simply onto a DIN rail for quick installation.

• Coil voltage of 24 V DC
• Input current of 9 mA
• Life of 2 x 10^7 mechanical cycles
• Switching current of 10 mA
• Switching voltage of 250 V A/DC
• SPDT (single pole, double throw) contact configuration
• Silver alloy contact material
• 1 pole
• IP20 (ingress protection) rating for protection against solid objects
• Dimensions of 6.2 (length) x 94 (depth) x 80 mm (height)
• Operating temperature range of -40°C to +60°C
