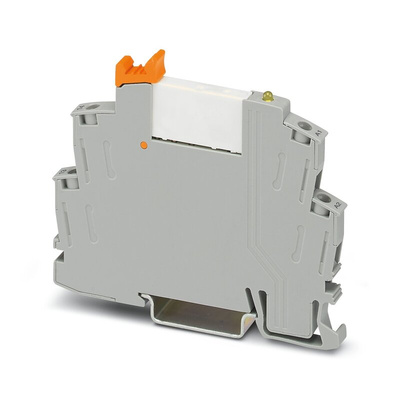

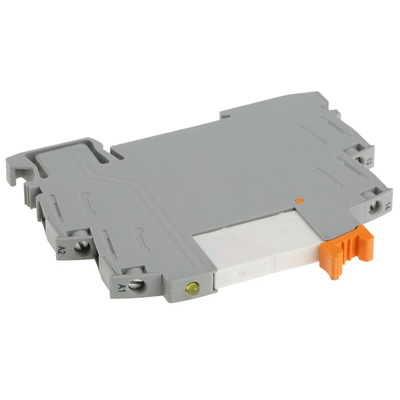

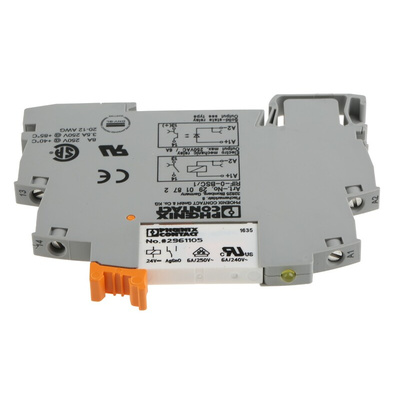

2903366, Phoenix Contact RIF-0-RSC-24DC/ 1 Series Interface Relay, DIN Rail Mount, 24V dc Coil, SPST, 1-Pole

Phoenix Contact Interface Relay, 0.22W Maximum Power Dissipation, Screw Connection Type - RIF-0-RSC-24DC/ 1 - 2903366

For glitch-free switching of your industrial electronics, wire up this interface relay from Phoenix Contact. It lets you open or close a connected circuit with a maximum voltage of 250V AC/DC, so it's handy for high-powered applications. Galvanic isolation between the input and output circuits prevents disruption to your signals and ensures super-smooth performance.
The relay's base has an IP20 rating, meaning it's touch-proof and shielded from tools larger than 12mm, for safe installation and maintenance. For added protection from electrical surges, the component withstands voltages of up to 6kV. Thanks to its wide operating temperature range between -40°C and +60°C, it can handle whatever conditions a harsh work environment throws at it. As it needs just 9mA input current, you can be sure it doesn't waste electricity.

Features & Benefits

• Rated mechanical lifespan of ±20 million cycles, so it's highly reliable
• Yellow LED for easy status monitoring
• Space-saving size of 84 (H) x 6.2 (W) x 68mm (D) so it fits into setups where space is at a premium
• Snaps onto a DIN rail in any position for fast and flexible installation

Datasheet - 2903366

Application Note - Installation Directive for Electromechanical and Solid - state Relay Modules

Line Drawing - 2903366
