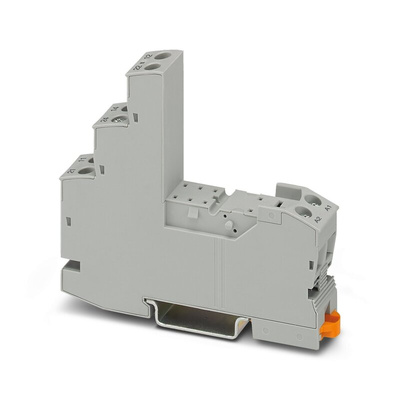

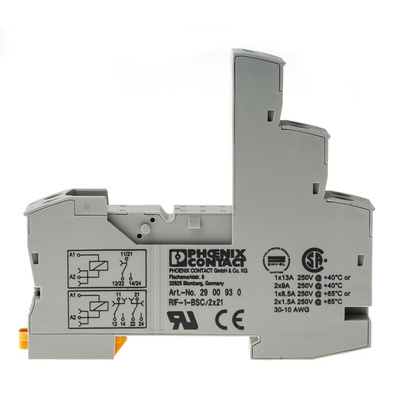

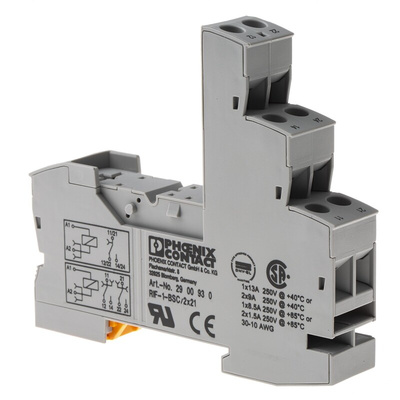

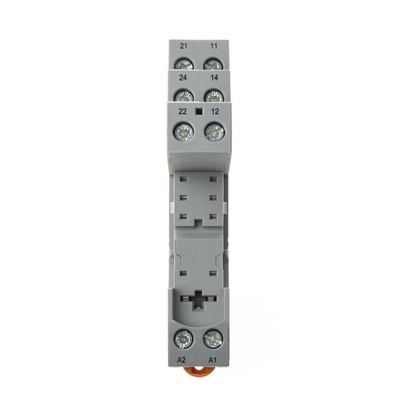

2900930, Phoenix Contact RIF-1-BSC 250V ac/dc DIN Rail Relay Socket, for use with Relays, Контактная колодка

Phoenix Contact Relay Socket, 0.5 to 4mm² Conductor Cross Section, 15.5A Current Rating - RIF-1-BSC/2X21 - 2900930

Keen to quickly swap between relays in your circuit? Make the switch with this Phoenix Contact relay socket. As it links your relay to your circuit with a simple plug-in connection, it lets you install and change between components in a flash. The unit handles currents up to 15.5A, so you can be confident it will handle the pressure of intense electrical loads. Support for both mechanical and solid-state relays makes this a go-to connection device for your switching systems.
There's no need to worry about changing conductors to fit this socket. It accommodates cross-sections between 0.5 and 4mm² to fit comfortably into your existing wiring. Confined spaces are no problem for this component due to its compact dimensions of 16 (W) x 89 (H) x 75mm (D), which let you easily squeeze it into busy systems.

Features & Benefits

• Tested to EN 60068-2-60 standards to ensure resistance to corrosive gases
• Screw terminals, so connections stay secure against movement
• Handles operating temperatures between -40°C and +85°C, so is safe to use in challenging settings

Datasheet 2900930

Line Drawing - 2900930
