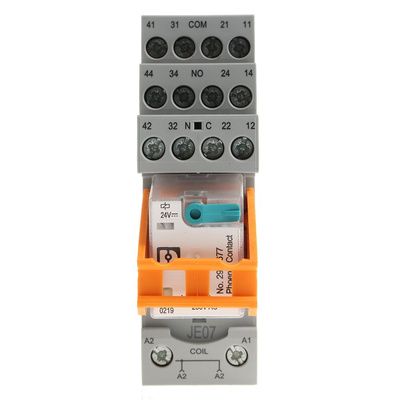

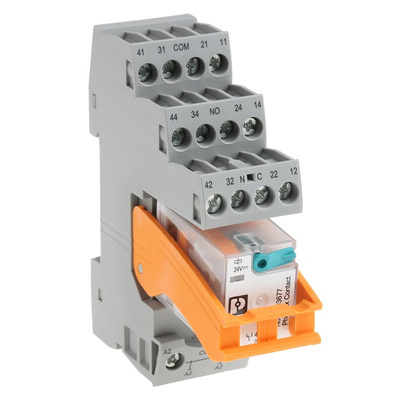

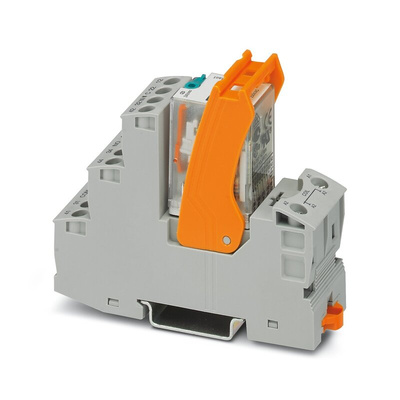

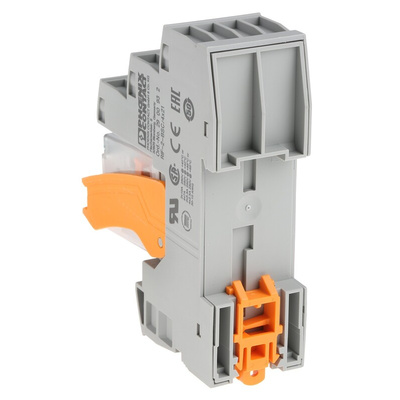

2903320, Phoenix Contact RIF-2-RSC-LDP-24DC/4X21 Series Interface Relay, DIN Rail Mount, 24V dc Coil, 4PDT, 4-Pole

Phoenix Contact Interface Relay, 4 Poles, 42mA Input Current - RIF-2-RSC-LDP-24DC/4X21 - 2903320

Choose this electromechanical interface relay from Phoenix Contact to ensure that digital signals between automated industrial components are sent safely and reliably. It's an ideal option when devices can't be directly connected due to differences in electrical potential or voltage. As a mounting base and retaining bracket are included, the unit comes ready to install.
To save space in your control panel packing area, can easily connect this relay in a row with other components. It has screw connectors to hold wires securely without risk of damage. The device meets UL 94 V2 flammability standards, so it only burns for a maximum of 60 seconds if it catches alight.
A relay like this prevents emergency situations in modern power, radio-electronic and X-ray installations. For versatility, it's compatible with both AC and DC switching currents.

Features & Benefits

• Wide operating temperature range of -40°C to +60°C, making it compatible with demanding conditions
• IP20-rated relay and base are protected against touch and tools larger than 12mm
• Fast response time of 12ms, so it reacts almost immediately for safety
• Nickel-silver alloy contacts for optimal electrical conductivity

Datasheet - 2903320

Line Drawing - 2903320
