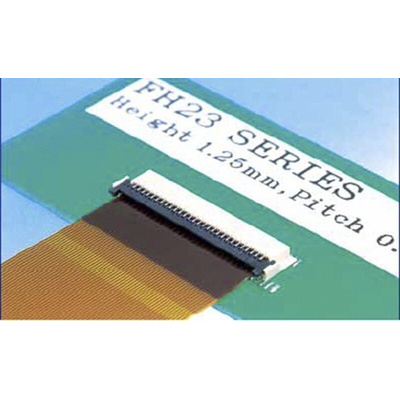

FH23-61S-0.3SHW(05), Hirose, FH23 0.3mm Pitch 61 Way Horizontal Female FPC Connector, Solder, Разъем

Hirose Surface Mount Female FPC connector

The Hirose FH23 series, 0.3mm pitch, female horizontal FPC connector has solder termination type and termination method and is surface mount device. The connector has low insertion force and high holding force. It has 61 ways and single rows. The housing is made of liquid crystal polymer and contact is made of phosphor bronze with gold plating. and this component is used for market applications. This connector has an electrical rating of 30VAC/DC and 300mA.

Features and Benefits

• Bottom of the connector is completely insulated, allowing conductive traces on PCB to run under the connector
• Does not use chlorine and bromine
• Flat top surface allows pick-up with vacuum nozzles
• Flip-lock actuator assures easy and reliable operation
• Halogen free
• Insertion force is LIF
• Mated height is 1.25mm
• Operating temperature ranges between -55°C and 85°C
• Rotating actuator permits easy insertion and a reliable connection with FPC

Certifications

• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
• UL 94 V-0
