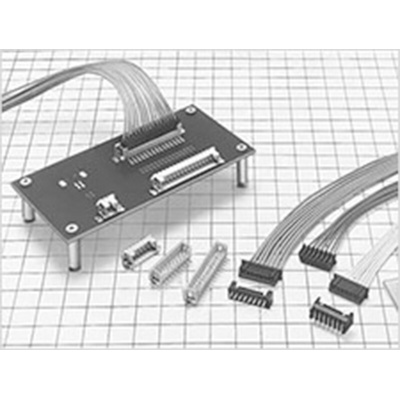

DF3-22SCF, Hirose DF3 Series Female Crimp Terminal, 22AWG Max, Контакты

Low profile design with the mounting height of 6.8mm
Achieves the multi-harness by the full automatic ID machine in combination with the DF11 series ID type.
Crimp Socket: Low profile design with mounting height 7.5mm.
Provide the contact crimping area with the sufficient space, and secures the stable crimping operation.
The board can be connected horizontally or vertically in combination with the straight header with the right angle header.
For horizontal connection, the board to board size is the low profile of 6.6mm.
Compatibility with the in-line plug allows the receptacle to set the board side to the receptacle and the cable side to the plug in the board to cable connection.
The board pre-fixed kink is treated with the post pin.
The style employs a scoop-proof and sturborn box type.
This SMT header is equipped with the metal tab to prevent peeling in the solder joint area.
