180260, Norbar Torque Tools Torque Multiplier, 1000Nm max O/P, 5:1 ratio, 1/2in I/P drive, 3/4in O/P drive

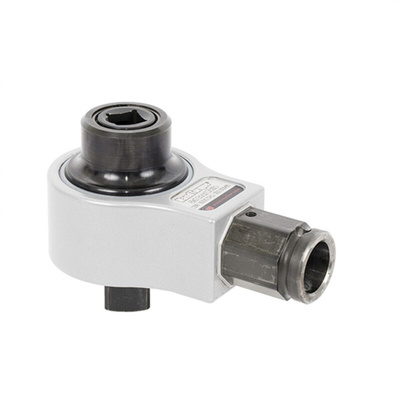

HT3-1000 is a compact and versatile torque multiplier that fits in the palm of your hand.

The HandTorque® HT3-1000 mechanical torque multiplier has been designed for use where it is necessary to provide higher torques than would otherwise be possible due to limitations of space or operator strength. Input to the multiplier is via a ratchet torque wrench set to one fifth of the desired output torque.
Norbar has used its latest gearbox technology and materials to produce a versatile and extremely compact torque multiplier – the HT3-1000

Features and Benefits:

At just 1.6 kg (without reaction bar), the HT3-1000 is easy to handle and support
Robust construction means minimal maintenance and long life
Updated aesthetics with tough silver metallic powder coating - ideal for use within tough, demanding work environments
+4% torque multiplication accuracy

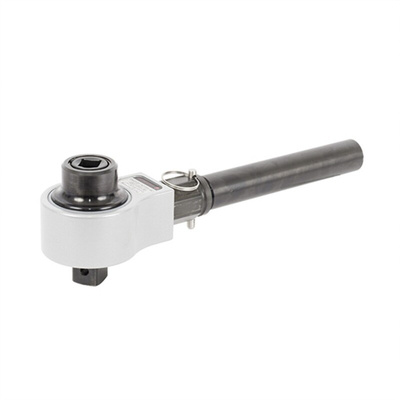

Supplied with 2 reaction bar styles for maximum versatility
With an outer diameter of just 65mm, the compact design aids use in space restricted applications

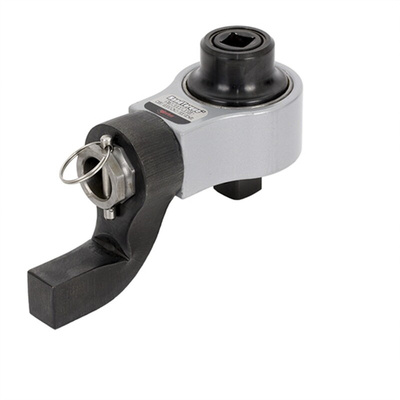

Quick change cranked reaction with improved flexibility allowing reaction in 8 orientations
