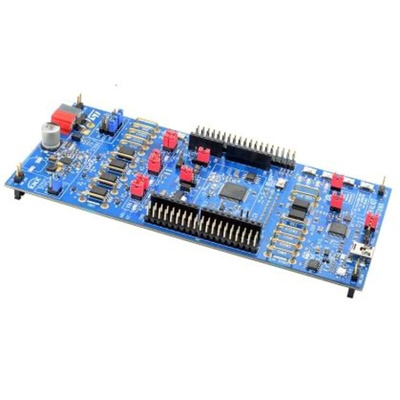

STMicroelectronics EVALKITSTKNX, PWM Controller, 16 MHz, ШИМ контроллер

STMicroelectronics PWM Controller

The STMicroelectronics STM32F103 family is a type of 32-bit cortex M3 full KNX twisted-pair device development kit based on the STKNX miniature transceiver. Its operating frequency is 16MHz with 128KB flash program memory. This includes originally TAPKO KNXprotocol stack KAIstack supported with AC6 openSTM32 (Linux, Windows and Mac OS-X) or Atollic TrueSTUDIO (Linux and Windows). This controller is used in automation.

Features and Benefits

Full KNX twisted pair device development kit based on the STKNX miniature transceiver
Controlled by STM32F103 microcontroller 32-bit Cortex® -M3 - 16 MHz - 128 kB Flash
Twisted pair TP1-256 support
Compatible with ETS engineering tool software
Test firmware already downloaded in the board to demonstrate features
Includes originally TAPKO KNX protocol stack KAIstack
Supported development environments: AC6 OpenSTM32 (Linux®, Windows® and Mac OS-X) or Atollic TrueSTUDIO® (Linux and Windows)
JTAG debug through isolated USB host interface (ST-LINK/V2-1 on-board)
Standard serial wire debug (SWD) and JTAG interfaces available on standard HE10 20-pin connector
Connectors for extension board compatible with Arduino™ and ST Morpho standards
UART through isolated USB host interface for connecting a PC
No external supply needed during SW development in “desktop mode” (KNX disconnected), USB supply only
Power supply flexibility exploiting whole supplies options offered by STKNX
1 button and 1 LED for KNX programming
4 buttons and 4 LEDs for basic KNX sensors and actuators emulation
Optional 32.768 kHz crystal for RTC mode
Optional CPU reset control from STKNX
STKNX area routed on 2 PCB layers only, for reference layout
Includes optional isolation mode for developing SELV product
Operating temperature range -40 °C to +85 °C

Certifications

• CEN EN 13321-1/2 (EU BA)
• CENELEC EN 50090 (EU HBES)
• EN 50491
• ISO/IEC 14543-3 (World HES)

Datasheet
