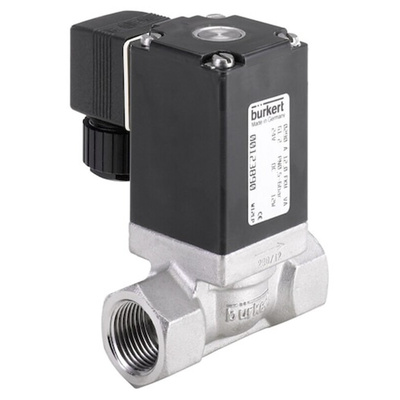

Burkert Solenoid Valve 053675, 2 port(s) , NC, 24 V ac/dc, 1in, Клапан

Burkert Solenoid Valve

The Burkert 0290 series 1in G female solenoid valve has a supply voltage rating of 24VAC/VDC. This 2-port NC position valve is a vibration-proof, block screwed coil system with a damped design for quiet closing. This valve opens without differential pressure and the opening process is supported by the fixed coupling of the diaphragm to the plunger. In the process, the integrated 'soft-kick' function opens in a manner that is gentle on the material. Its maximum opening and closing time are 250ms and 2000ms. This valve is used with compressed Air, hydraulic Oil, neutral media and water.

Features and Benefits

Maximum working pressure is 16bar
Flow factor(Kv) is 10m³/h
Kick and drop electronics are moulded into all DC variants for reduced electrical power consumption
Operating temperature ranges between 0°C and 55°C
Power consumption is 120VA (Inrush AC) ), 32VA/16W (Operation AC) and 9W DC
Servo-assisted diaphragm with diameter of up to DN50
Solenoid coils are moulded with a chemically resistant epoxy

Certifications

IP65 rated
