Infineon

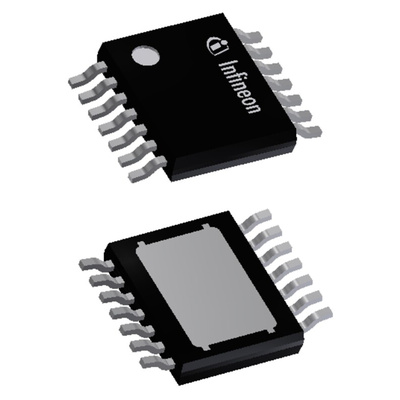

The BTS7004-1EPP is a smart high side power switch, providing protection functions and diagnosis. It has an electric rating of 28V and 3mA and nominal load current 15A (DC). This device is used in a potential application.
Features and Benefits
• Absolute and dynamic temperature limitation with controlled reactivation
• Capable for inrush currents up to 107A
• Green product (RoHS compliant)
• High current PROFET™ 12V family
• Open load in on and off state
• Operating temperature ranges between -40°C and 150°C
• Overcurrent protection (tripping) with Intelligent latch
• Overvoltage protection with external components
• Proportional load current sense with high accuracy (+/-5% calibrated)
• Qualified in accordance with AEC Q100 grade 1
• ReverSave™ for low power dissipation in reverse polarity
• ReverSave™ for low power dissipation in reverse polarity
• Short circuit to ground and battery detection
• Typical Rds(on) of 4mΩ @ 25°C in small TSDSO-14 package
