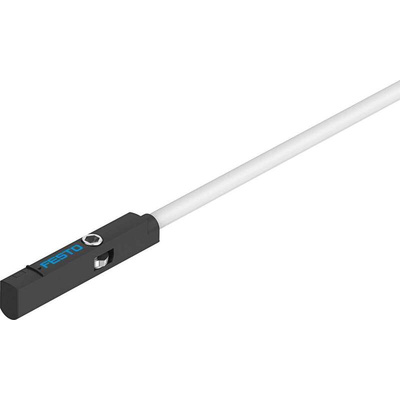

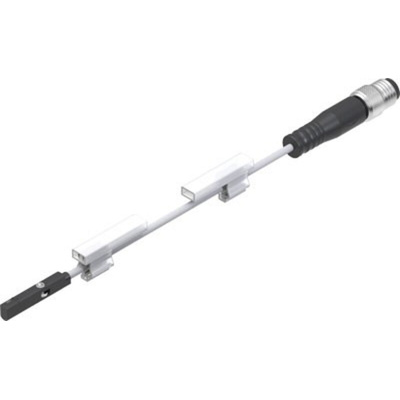

SMT-10M-NS-24V-E-0,3-L-M8D, Festo Proximity Sensor Pneumatic Position Detector, IP65, IP68, 30V dc, NPN Operation, SMT-10M, with LED indicator,, Датчик

Festo Pneumatic Position Detector, 30V DC Supply Voltage, 100mA Maximum Output Current - SMT-10M-NS-24V-E-0,3-L-M8D

Check what your equipment's getting up to with this pneumatic position detector from Festo. It's used to monitor the linear position of a piston in your setup, ensuring reliable performance. As it features a magneto-resistive sensor, it can detect magnetic fields without the need for physical contact, reducing the risk of damage and interference. Thanks to its NPN operation, this unit detects the position or level of an object in lightning-quick time, delivering pinpoint accuracy. A yellow LED indicator allows for simple status monitoring at a glance.

• Broad operating temperature range between -40°C and +70°C to cope with challenging environments
• Fast switch-on time of less than 1.3ms boosts productivity
• 6.7g weight minimises load on your setup
• M8 outlet port is widely compatible with standard equipment

Applications

• Industrial automation
• Assembly lines
• Robotics systems
• Material handling

Is this detector waterproof?

Yes, its IP68 rating indicates it can withstand submersion in water up to 1.5m deep for 30 minutes.

How robust is this detector?

This detector's PA-reinforced high alloy steel housing makes it a durable choice, as it's resistant to chemicals, corrosion and impact damage.

Datasheet

SMT-10M-NS-24V-E-0,3-L-M8D Specification Sheet

Brochure - Simply Part Of The Solution

Instruction Sheet - SMT-10M-NS-24V-E-0,3-L-M8D
