SMT-10M-ZS-24V-E-2,5-L-OE, Festo Proximity Sensor Pneumatic Position Detector, IP65, IP68, 30V dc, NO Operation, SMT-10M, with LED indicator,, Датчик

FESTO Proximity Sensors

Festo SMT/SME-10M Series C-Slot proximity sensors are fully compatible with all Festo cylinders that have C-slots and round cylinders with corresponding mounting kits. The SME/SMT range provides a reliable sensing solution in a variety of switching options.

Features and Benefits

• Sturdy central mounting guarantees that the sensor is securely screwed into the slot


• Vibration, shock and tensile forces applied to the cable will neither cause the sensor to come loose nor lead to unreliable sensor functioning


• The proximity sensors are compatible with all Festo C-Slots


• 24 V dc operating voltage


• Switching outputs include PNP, NPN, and contacting

Applications and Uses

All sensors have cables suitable for use in energy chains and on robot applications as standard. This ensures maximum dependability and process reliability.

Festo Pneumatic Position Detector

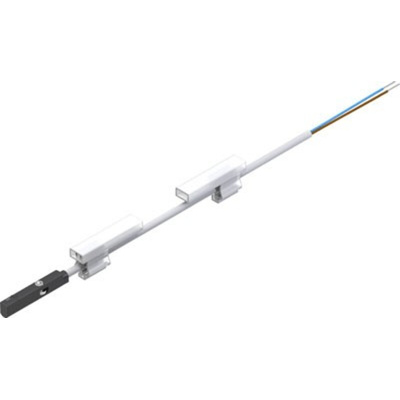

The Festo SMT-10M is a 2-wire non-contacting pneumatic position magnetoresistive proximity sensor, which is fully compatible with all Festo cylinders that have C slots and round cylinders with corresponding mounting kits. Specifically designed for a round slot, the detector is contactless. The SMT series provides a reliable sensing solution in a variety of switching options. Its sturdy central mounting guarantees that the sensor is securely screwed into the slot. Vibration, shock and tensile forces applied to the cable will neither cause the sensor to come loose nor lead to unreliable sensor functioning. Its In-line cable outlet comes with open-end connection.

Features and Benefits

• Heat and corrosion resistant design
• Oil resistant
• 2.5m cable length
• Wide range of mounting and connection options
• Operating temperature ranges between -40°C and 70°C
• Operating voltage ranges between 5VDC and 30VDC
• Maximum output current 100mA

Applications

• Food and packaging sector
• Energy chain and robots
• Medical equipment
• Automation industry

Certifications

• IP65 rated
• IP68 rated
• RCM Mark
• cULus listed (OL)

Datasheet

SMT-10M-ZS-24V-E-2,5-L-OE Specification Sheet
