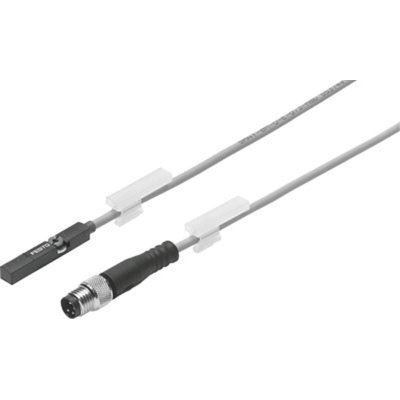

FESTO Position Transmitter - SMAT-8M-U-E-0,3-M8D

The SMAT-8M is a position transmitter for the contactless sensing of the piston position of drives that can be detected magnetically. It supplies a displacement-proportional analogue output signal in the position measuring range. It is connected directly to the analogue PLC inputs without any accessories. With its extremely compact design, the SMAT-8M is the ideal solution for grippers, short-stroke cylinders and all applications in which installation space is restricted.

Returning an accurate reading with FESTO's position transmitter is easily achieved, the device gives users feedback on a percentage of the valve opening.

Features & Benefits

• This position transmitter is for T-slot design
• Oil resistant
• Magnetic measuring principle
• <=40mm distance measuring range
• LED status indicators
• All electrical connections are polarity protected
• PA6 reinforced material housing
• 0-10V analogue output
• This device has a 3 m/s maximum travel speed

How does a position transmitter work?

Essentially, a position transmitter measures the span of travel of any moving object and it transmits a signal. They can be used in several positions, most commonly on a shaft or a valve or on the louvers of a cooler, here it will measure the distance of movement.
