SMT-8-SL-PS-LED-24-B, Festo Proximity Sensor Pneumatic Position Detector, IP65, IP68, 30V dc, PNP Operation, SMT, with LED indicator, 562019, Датчик

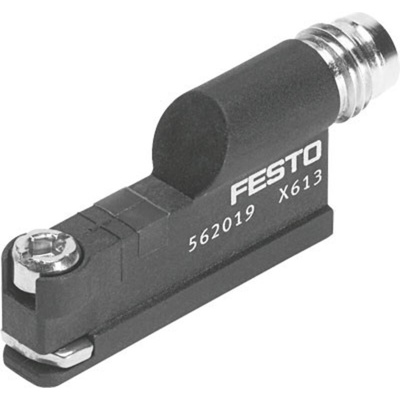

Festo Pneumatic Position Detector, PA Housing, 4.2g Weight - SMT-8-SL-PS-LED-24-B

Keep a close eye on the piston rod of your cylinder using this pneumatic position detector from Festo. It's ideal for use in applications where knowing the status of the piston is crucial, as it senses the rod's magnetic field and reports its position to your control device. Thanks to its wide operating temperature range of -20°C to +70°C, this product can handle harsh working conditions. A combined IP65 and IP68 rating indicates that this unit is completely protected from dust and low-pressure jets of water, so contaminants can't get in.

Features & Benefits

• Built-in short-circuit protection to prevent damage from fault currents
• Light weight of 4.2g puts minimal strain on the cylinder
• Threaded design for convenient, tool-free installation
• PA housing delivers thermal resistance for safe operation in demanding environments

Applications

• Oil and gas industry
• Conveyor systems
• R&D laboratories
• Mining equipment

Where should I mount this detector?

You can mount this detector on your cylinder by slipping it into the pre-cut T-slot in the body.

How do I monitor the status of this device?

It has an LED indicator that turns yellow for at-a-glance monitoring of its operating status.

Datasheet

SMT-8-SL-PS-LED-24-B Specification Sheet

Brochure - Simply Part of the Solution

Instruction Sheet - SMT-8-SL-PS-LED-24-B
