NECU-S-M12G3-HX, Festo Adapter, NECU Series, For Use With Self-Assembly

Festo NECU Series Plug / Socket Connectors

Features and Benefits

• Cable diameter 6 mm to 8 mm
• Terminal cross-section 0.14 mm² to 0.75 mm²
• IP67 Protection
• Ambient temperature -25°C to +85°C
• CE mark to EU directive low voltage devices
• RoHS compliant
• Corrosion resistance class 1 (low corrosion stress)
• Zinc diecast, nickel plated housing

Straight Socket

• Stock no. 136-6487, M12x1, 5-pin, screw terminal

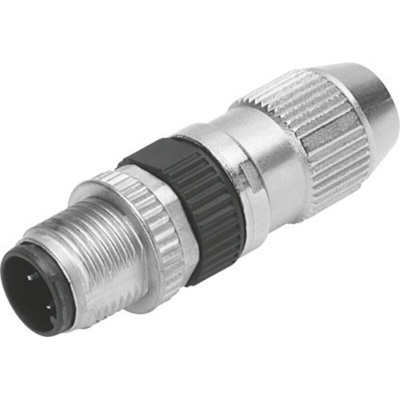

Straight Plug

• Stock no. 136-6486, M12x1, 5-pin, screw terminal, can be screened
• Stock no. 136-6867, M12x1, 4-pin, D-coded, screw terminal, can be screened

Festo Plug Connectors

The Festo plug connectors are the NECU series for cable diameter of 2.9mm to 5.1mm. The plugs come with a terminal cross-sectional area of 0.14mm² to 0.75mm². The range of operating voltage for both AC and DC is 0-32V and the acceptable current load at 400C is 4A. This plug is available in zinc die-casting and nickel plated material housing.

Features and Benefits

• Simple connection using clamping technology
• Ambient temperature ranges between -25°C and 85°C
• Corrosion resistance class 1 (low corrosion stress)

Applications

• Self-Assembly

Certifications

• UL approved
• CE certified
• IP67 rated

Datasheet

NECU-S-M12G3-HX Specification Sheet
