SFAM-62-1000L-M-2SA-M12, Festo Flow Controller, IP65, 0 → 10V, NC, NO Operation, SFAM, 564930, Регулятор потока

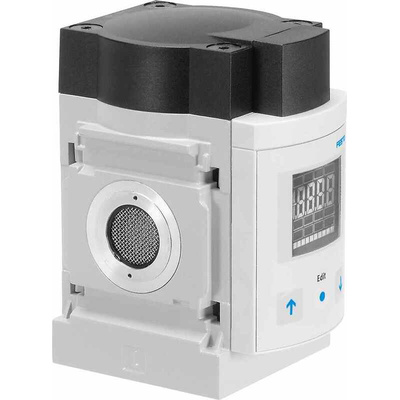

Festo Flow Controller, 0 V to 10 V - SFAM Series - SFAM-62-1000L-M-2SA-M12

Monitor the flow of compressed air or hydraulic fluid using this versatile flow controller from Festo. It's ideal for analysing the energy efficiency of your system and is also useful for detecting leaks in air lines. The unit has an analogue output that's clearly indicated on its LCD (liquid crystal display) panel, so you can easily monitor flow and consumption information as well as threshold values. Its robust housing is made from die-cast aluminium, which is rust-resistant and lightweight for improved efficiency and longevity.
A modular design makes the controller suitable to use by itself or in combination with service units from the Festo MS range. An IP (ingress protection) 65 rating means this flow controller is dust-tight and protected against low-pressure water jets.

• Suitable for use in hazardous areas where explosive substances may be present
• Includes polarity protection for all electrical connections to increase versatility of use
• Wide operating temperature range of 0°C to +50°C makes it suitable for use in a range of environments
• High maximum flow rate of 1000 L/min for improved speed and reaction time
• Unidirectional sensor gives you a choice of left or right flow direction

Sensors Catalogue

SFAM-62-1000L-M-2SA-M12 Specification Sheet

Instruction Sheet - SFAM-62-1000L-M-2SA-M12
