SFAB-10U-HQ6-2SV-M12, Festo Flow Sensor, Регулятор потока

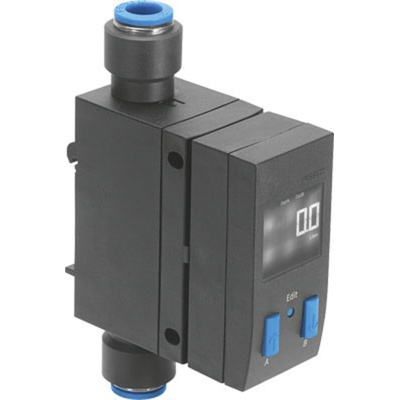

Festo Flow Controller, IP65 Rating, 0 to 10 Bar Operating Pressure - SFAB-10U-HQ6-2SV-M12

When you need to monitor the rate and consumption of compressed air through your system, choose this flow controller from Festo. You can use it to find leaks in air pipes to help you keep track of energy usage and efficiency. The unit is a reliable option for industrial environments thanks to its wide operating temperature range between 0°C and +50°C. For versatility, it has an operating pressure range between 0 and 10 bar. A 270° rotatable display allows you to adjust the setup for easy viewing, according to your installation or accessibility needs.

Features & Benefits

• Illuminated blue LCD display to help you clearly see airflow measurements
• IP65-rated housing means it's dustproof and protected against low-pressure jets of water
• Light weight of 600g for easy handling and installation
• Maximum output current of 100mA for wide compatibility

Applications

• Factory automation
• Pneumatic operations
• Production lines
• Testing equipment
• HVAC systems

How do I mount this flow controller?

For versatility, you can mount this flow controller in three different ways – by using a through-hole, a top-hat rail or a wall/surface fixing.

Datasheet

SFAB-10U-HQ6-2SV-M12 Specification Sheet

Catalogue - Flow Sensors SFAB

Instruction Sheet - SFAB-10U-HQ6-2SV-M12
