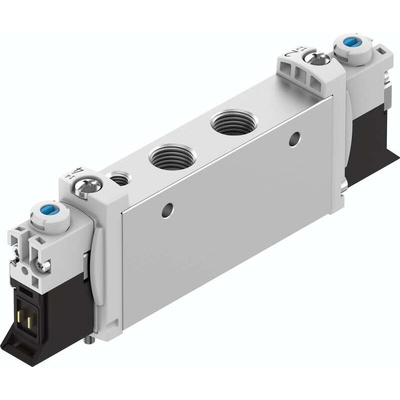

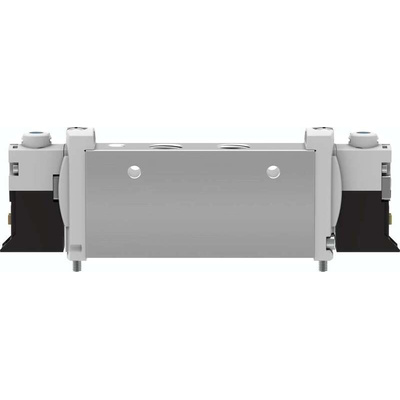

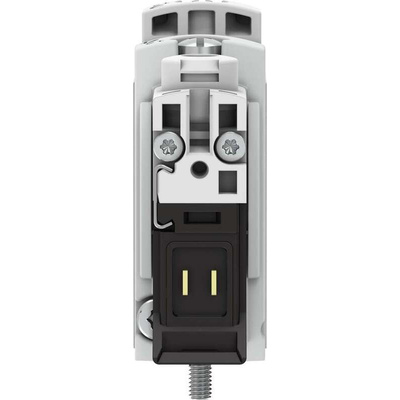

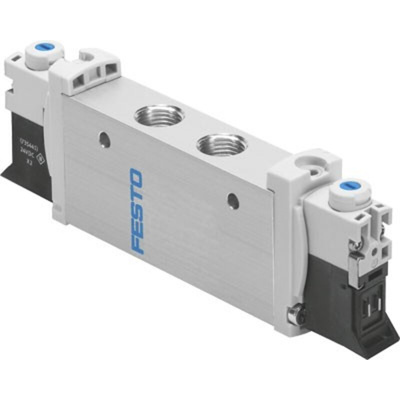

VUVG-L14-T32C-AT-G18-1P3, Festo 3/2 Solenoid Valve - Pilot G 1/8 VUVG Series 24V dc, 566496, Клапан

Festo Solenoid Valve, 560L/min Nominal Flow Rate, Soft Sealing Principle - VUVG-L14-T32C-AT-G18-1P3

Controlling your pneumatic equipment is a breeze with this solenoid valve from Festo. It stops or starts airflow and vents off excess pressure to bring air-driven equipment to life. When power is switched off, the spring-return function automatically returns the valve to the closed position, making it ideal for user-operated systems. As it handles pressures from 1.5 to 8 bar, this is an ideal choice for light-duty and medium-duty setups. You get near-instant reactions thanks to its speedy 9ms switch-on and 25ms shut-off times. To minimise maintenance, NBR seals stop dust and moisture from getting into the workings.

Features & Benefits

• Threaded G1/8 connection ports prevent accidental loosening even in vibrating conditions
• Operates reliably in demanding temperatures between -5°C and +60°C
• Low 89g weight puts minimal strain on your system

Applications

• Food and drink production
• Manufacturing industry
• Construction sites
• Power generation

What kind of conditions can this valve withstand?

Once linked to your wider system, this valve has an IP65 rating, which means it withstands dust and water jets. This makes it ideal for use in contaminated industrial environments.

Datasheet

VUVG-L14-T32C-AT-G18-1P3 Specification Sheet

Catalogue - Simply Part of the Solution

Brochure - Simply Part of the Solution
