VUVG-L14-M52-AT-G18-1P3, Festo 5/2 Solenoid Valve - Pilot G 1/8 VUVG Series 24V dc, 566499, Клапан

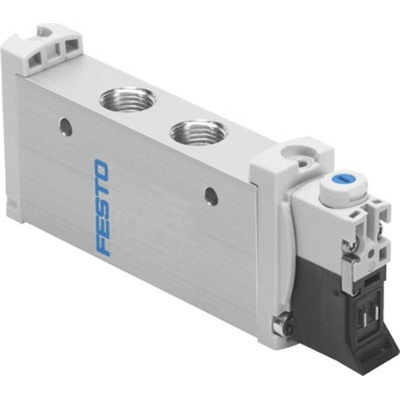

Festo Solenoid Valve, With Manual Override, 780L/min Maximum Flow Rate - VUVG-L14-M52-AT-G18-1P3

Want to manage your machine's airways at the touch of a button? Take charge with this Festo solenoid valve. For handy remote switching, electrical actuation opens and closes the ports based on control signals. By managing flow rates of up to 780L/min, the unit tackles intense sorting applications with ease. Linking it with existing hardware is a breeze, thanks to its standardised G1/8 thread. As the valve has a manual override feature, you can open its ports when it's not powered and carry out inspections safely.

Features & Benefits

• Response times between 14 and 22ms to get the job done fast
• Corrosion-resistant aluminium alloy casing stays strong in damp areas
• IP65 rating indicates resistance to dust and low-pressure water jets for top performance in tough settings
• Copes with pressures between 2.5 and 8 bar for versatile pneumatic process management

Applications

• Semiconductor manufacturing
• Food production
• Packaging plants
• Pharmaceutical industry

What does this valve's 5/2 function mean?

A valve's function number shows how many ports and positions the unit has. This device's 5/2 function means that it has five ports and two switch positions, indicating that it handles multiple connections at once.
