MHJ10-S-2,5-QS-6-HF, Festo 2/2, Closed, Monostable Solenoid Pilot Valve - Electrical Push In 6 mm MHJ Series 24V dc, 567503, Клапан

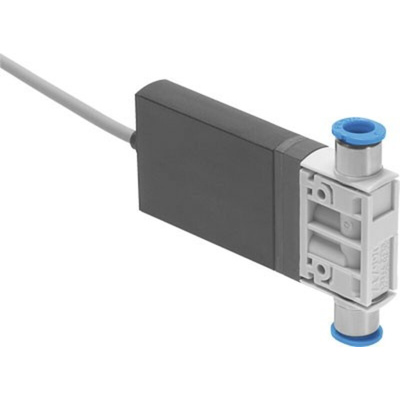

Festo 2/2 Solenoid Pilot Valve, Electrical Push-in 6 mm - MHJ Series - MHJ10-S-2,5-QS-6-HF

This solenoid pilot valve from Festo is ideal for controlling the flow of compressed air in a pneumatic system. This is a 'normally closed' valve, which means it prevents air flowing until a current is applied to the internal solenoid coil. The coil then retracts, lifting the plunger inside the valve and allowing air into the system. The valve has a through-hole mounting style, designed for easy installation and to ensure it stays securely in place.

• Push-in 6 mm connection port thread
• Valve function is 2/2 closed, monostable
• Maximum flow rate of 160 l/min
• Minimum operating pressure of 0.5 bar
• Maximum operating pressure of 6 bar
• Operating temperature range of -5°C to +60°C
• Solenoid voltage of 24 V DC
• Solenoid power consumption of 3.2 W

Range Information

• Festo's MHJ series is a range of fast-switching solenoid valves
• The series supports a nominal flow rate ranging from 50 l/min to 160 l/min
• The MHJ series can be used as part of a modular system and allows for a range of configuration options
• The entire series has identical basic valves that can be replaced quickly and easily for hassle-free maintenance

Datasheet

MHJ10-S-2,5-QS-6-HF Specification Sheet

Catalogue - MHJ10-S-2,5-QS-6-HF
