SPTE-P10R-Q4-B-2.5K, Festo Pressure Sensor Controller

Festo SPTE Series Pressure Sensors

Festo SPTE series pressure transmitters for simple and quick pressure monitoring. The intelligent fitting delivers instant information about the current pressure and is equally effective for object detection via back pressure as well as for pressure, regulation and vacuum detection.

Features and Benefits

Quick switching-point adjustment at the touch of a button
Analogue output
LED switching status indicator

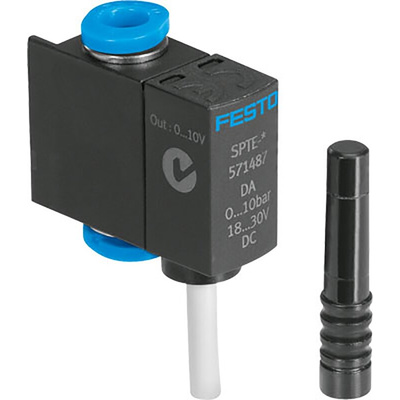

Festo Pressure Transmitter

The Festo SPTE series pressure transmitter has a relative operating pressure ranging between 0bar and 10bar. It has a push-in connector 4mm pneumatic connection and 3-core open end cable electrical connection with a cable length of 2.5m. This connector operates on DC voltage range between 10V and 30V and outputs an analogue voltage of 1V to 5V.

Features and Benefits

• Accuracy is 3% full-scale
• Quick switching-point adjustment at the touch of a button
• LED switching status indicator
• One or two SPTE transmitters can be connected to a SCDN signal converter
• Measured value indicator with selection of units
• Blue display with high-contrast white text and red switchover
• Housing is made of PA, reinforced

Applications

• Network monitoring
• Regulator monitoring
• Vacuum monitoring
• Leak tests
• Object detection

Certifications

• IP40 rated

Datasheet

SPTE-P10R-Q4-B-2.5K Specification Sheet
