SDBT-MS-20NL-ZN-E-5-LE-EX6, Festo Electronic Proximity Sensor Pneumatic Position Detector, IP65, IP68, 18V dc, SDBT-MS, with LED indicator, 579071, Датчик

Festo Electronic Proximity Sensor, 18V DC, 0.25A - SDBT-MS-20NL-ZN-E-5-LE-EX6

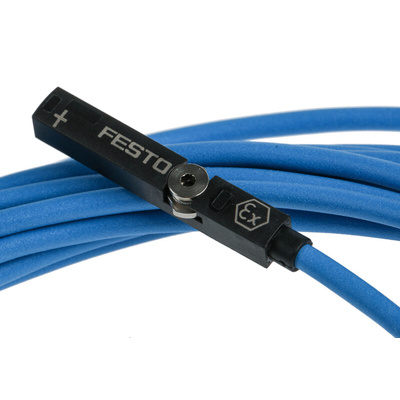

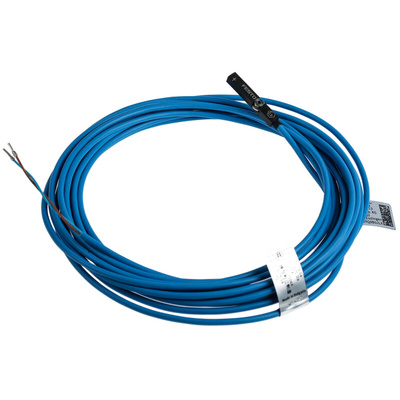

Accurately detect the piston position on your double-acting cylinders with this electronic proximity sensor from Festo. It detects the field of a magnet that's integrated into the cylinder piston. The sensor is mounted onto the pneumatic cylinder’s body and indicates 'on' or 'off' based on proximity to the magnet. It has a yellow light-emitting diode (LED) indicator that lights up when in operation, making it easy to know when it detects the piston. This sensor is an essential component in pneumatic processes as it helps automate the actuation of double-acting cylinders.

• Polypropylene insulation material for effective protection from electric shock and improved safety
• IP65 and IP68 (ingress protection) rated to withstand dust, sand, dirt and submersion in 1.5m of water for 30 minutes
• Light weight of 53g for easy handling
• Polyamide (PA) reinforced high-alloy steel for durability and corrosion resistance

Applications

• Automatic gates and doors
• Security cameras
• Process and packaging equipment

Why is this component polarity-protected?

This sensor is protected from reverse polarity to ensure that it doesn't get damaged if the power supply's neutral wire is plugged into the outlet where the live wire should be.

Datasheet

SDBT-MS-20NL-ZN-E-5-LE-EX6 Specification Sheet

Catalogue - Proximity Switches SDBT

Instruction Sheet - SDBT-MS-20NL-ZN-E-5-LE-EX6
