SPTW-P10R-G14-A-M12, Festo Pneumatic Sensor, G 1/4 0bar to 10 bar, Датчик

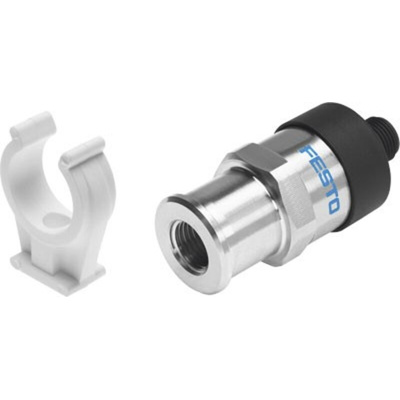

Festo Pressure Transmitter Pneumatic Sensor, 8 to 30V DC - SPTW-P10R-G14-A-M12

This pneumatic sensor from Festo lets you monitor the rise and fall in the pressure of gases and liquids in industrial systems. The transmitter is a thin metal-film pressure sensor, which is sensitive to change and accurately reads data. It reacts to a wide pressure range of between 0 and 10 bar. This sensor can measure compressed air as well as gaseous and fluid media, so you can use it in a wide range of applications, including packaging and medical engineering.

• IP67 (ingress protection) rating means this sensor is resistant to dust and water damage
• Compact (80g) size for easy installation in small settings
• Operating temperature range of 0°C to +80°C for reliable use in demanding conditions

Applications

• Chemical factories
• Water treatment facilities
• Power plants
• Cooling systems

How durable is the contact material of this Festo sensor?

The part of the sensor that comes into contact with fluids and gases is made from non-corrosive high-alloy steel. This material is very tough and doesn't rust easily, so you can use it for a long time.

Datasheet

SPTW-P10R-G14-A-M12 Specification Sheet

Catalogue - Pressure Transmitters SPTW

Instruction Sheet - Pressure Transmitter SPTW
