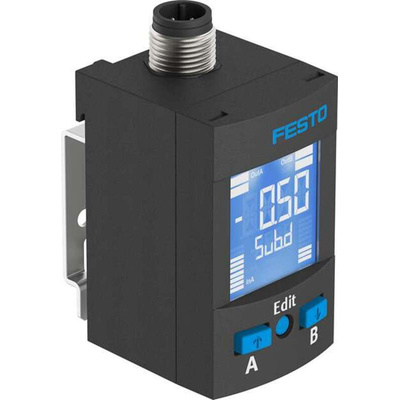

SPAU-P10R-W-G18FD-L-PNLK-PNVBA-M12U, Festo Pressure Sensor, 30V dc, IP65, IP67 10bar

Festo Pressure Sensor, G1/8 Port Connection, 3ms Rise Time - SPAU-P10R-W-G18FD-L-PNLK-PNVBA-M12U

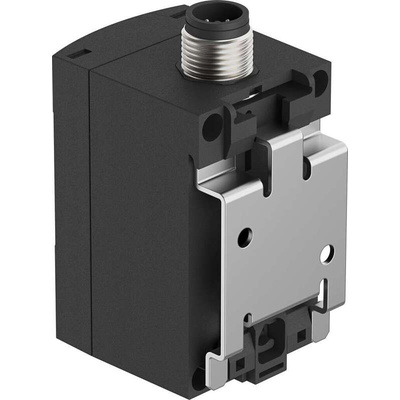

Make measuring the pressure of compressed air a breeze with this sensor from Festo. You can be sure it always has its eye on the ball, thanks to a ±1.5% FS accuracy level. It's a handy option for low-power systems as it runs off a 30V DC supply voltage and it monitors values between 0 and 10 bar, so it's a versatile option. Finding the ideal installation spot is simple, as the unit's compatible with straightforward wall or surface mounting.

Features & Benefits

• Operates in a temperature range between 0°C and +50°C so it's suitable for harsh environments
• Light 70g weight doesn't add excess load to your system
• Compatible with compressed air and other inert gases for versatility

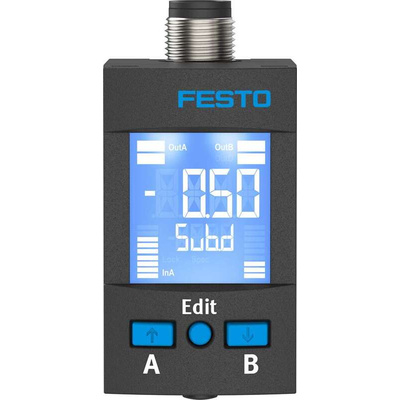

• Illuminated LCD provides easy status updates at a glance
• IP67 rating means it's dust-tight and resistant to low-pressure water jets from all directions

Applications

• Network monitoring
• Air pressure testing
• Pneumatic systems

What units does this device measure in?

You can customise this device to provide readings in either psi, MPa, inchH2O, kPa, inchHg, kgf/cm², mmHg or bar. This makes it a widely compatible option.
