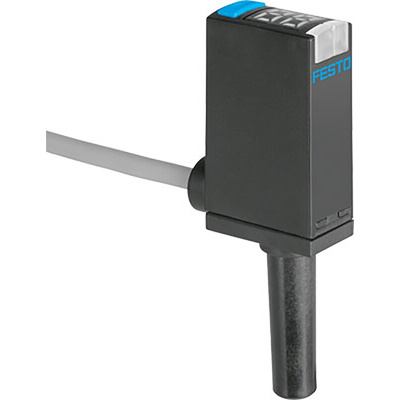

SPAE-P10R-S4-PNLK-2.5K, Festo Pressure Sensor, 30V dc, IP40 +10 bar

Festo SPAE Series Pressure Sensors

Festo SPAE series electronic pressure sensor with piezoresistive pressure measuring cell. Featuring integrated signal processing, numerical percentage pressure indicator, control keys and a switching output, PNP/NPN switchable. Two switching signals and the pressure measurement value can be transmitted via IO-Link.

Features and Benefits

IO-Link
Switching functions: threshold value or window comparator
Switching logic: normally open (NO) or normally closed (NC)
Display of minimum and maximum readings
Display can be rotated and switched off
Protection against tampering using security code

Festo Pressure Sensor

The Festo SPAE series pressure sensor is designed to measure media pressures with a piezoresistive measuring cell. It works on 30V supply voltage. The sensor measures the pressure in range of 0bar to 10bar. It has a switchable element function with normally open or normally closed contact. This sensor has a push-in sleeve of 4mm. It has a 7 segment display that can be rotated and switched off.

Features and Benefits

• Service temperature ranges between 0°C and 50°C
• Integrating signal processing and control keys
• Switching electrical output is of NPN or PNP or IO-link type
• Numerical percentage pressure indicator
• Accuracy is ±1.5% FS
• Plug-in mounting and 2.5m connecting cable with open end connection
• Protection against tampering using security code

Applications

• Pressure monitoring
• Air-pressure test

Certifications

• cULus approved
• CE certified
• IP40 rated
