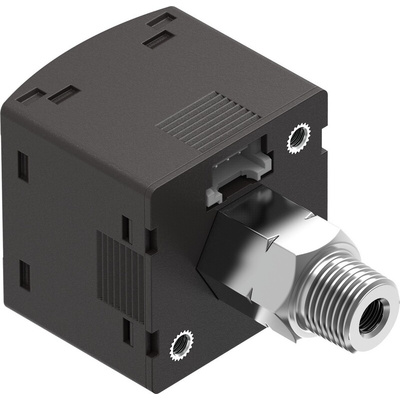

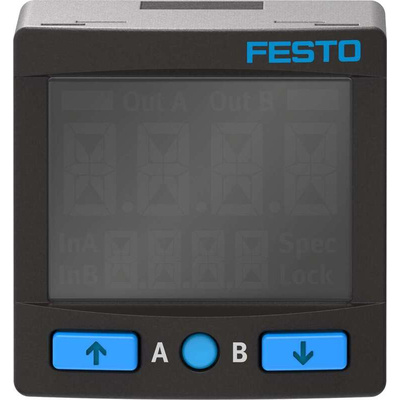

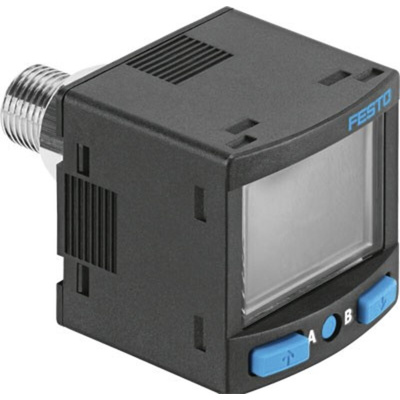

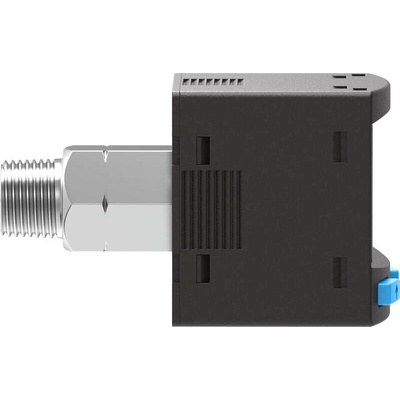

SPAN-P10R-R18M-PNLK-PNVBA-L1, Festo Pressure Sensor, 30V dc, IP40 10bar

Festo Pressure Sensor, +50°C Maximum Operating Temperature, Repetition Accuracy ±0.3%FS - SPAN-P10R-R18M-PNLK-PNVBA-L1

Keep things flowing smoothly in your pneumatic system with this pressure sensor from Festo. It monitors the pressure of compressed air and other inert gases and sends the values to the connected control unit so you can act quickly if parameters are exceeded. As it functions reliably between 0 and 10 bar, you can put it to work in either a low or high-pressure application. Thanks to its illuminated LCD, you can depend on this sensor for clear readings even in poor light conditions.

Features & Benefits

• R1/8 male thread and M5 female thread allow straightforward pneumatic connectivity
• IP40 rating indicates protection against solid objects and debris over 1mm
• Piezoresistive sensor type enables high-resolution measurements
• Securable with a four-digit code to prevent unauthorised access
• Tough PA-reinforced housing stands up to rough conditions for a long service life

Applications

• Automotive manufacturing
• Robotics systems
• Logistics facilities

What units can this pressure sensor display measurements in?

It can display pressure readings in many different units, including bar, psi, kPa and InchH20, so you can customise it to suit your preference.

How do I mount this sensor?

You can mount this sensor on the front panel by using the built-in thread or with a surface bracket.
