SPAN-B2R-Q4-PNLK-PNVBA-L1, Festo Pressure Sensor, 30V dc, IP40 1bar

Festo SPAN Series Pressure Sensors

Festo SPAN series pressure sensors for monitoring compressed air and non-corrosive gases. The measuring method is based on a piezoresistive measuring cell for relative pressure measurement. Pressure values are transmitted to the connected control system as a switching signal, as an analogue signal or via IO-Link depending on the sensor variant and selected parameters.

Features and Benefits

Compact design
IO-Link
Clear 2-line display
Various switching functions
Pressure and vacuum
13 pressure measuring ranges

Festo Pressure Sensor

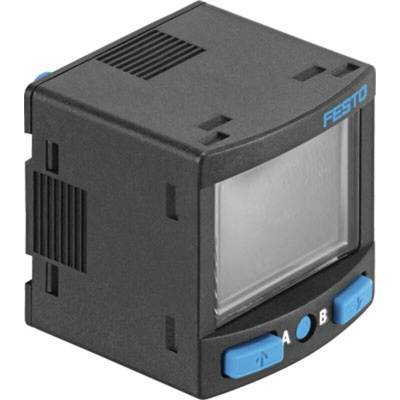

The Festo SPAN series pressure sensor is designed to monitor pressure of compressed air and non-corrosive gases. It works on 30V supply voltage. The sensor measures the pressure in range of -1bar to 1bar. It has a switchable element function with normally open or normally closed contact. This has a push-in connector of 4mm without thread. It has a clear 2-line display.

Features and Benefits

• Service temperature ranges between 0°C and 50°C
• Switching electrical output is of NPN or PNP or IO-link type
• Plug connector with L1 design
• Accuracy is ±1.5% FS
• Wall mounting with front panel

Applications

• Network and regulator monitoring
• Object detection
• Leak test

Certifications

• cULus approved
• CE certified
• IP40 rated

Sensors Catalogue

SPAN-B2R-Q4-PNLK-PNVBA-L1 Specification Sheet
