SFAW-32T-TG12-E-PNLK-PNVBA-M12, Festo Flow Controller, IP65, 0 → 10V, Регулятор потока

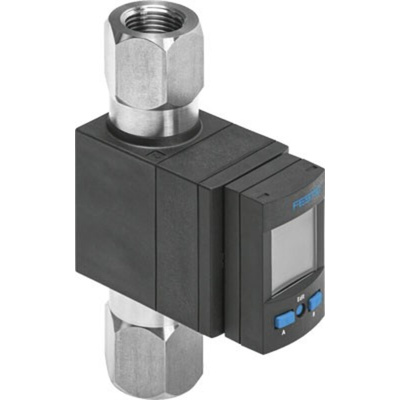

Festo Flow Sensor - SFAW-32T-TG12-E-PNLK-PNVBA-M12

The Festo SFAW flow sensor is intended for use in measuring and monitoring the flow, volume and temperature of liquid media. The sensor can be rotated through 360° in the direction of flow so that once it has been installed it can be aligned without the need for tools. It has 2 switching ports that provide a connection to a higher-level system. The outputs of switching can be configured to monitor a threshold value, it can be either PNP or NPN and either normally open (NO) or normally closed (NC). The flow rate and the accumulated volume are calculated from the flow velocity. A large, illuminated LCD display increases operational safety and makes the currently displayed values easy to read. It requires 0V to 10V voltage supply and the current rating of 100mA.

Features & Benefits

• Flow signal monitoring to detect unstable flows
• Has 5 pin, M12 straight plug electric connection and analogue output
• Has female thread with connection size G1/2
• Integrated temperature sensor records the temperature of the media
• Maximum flow measuring range 32l/min with unidirectional flow
• Operating temperature ranges between 0°C and 50°C
• Ultra simple and fast mounting of media connections using clips
• Holds as IP rating of IP65 and an RCM Mark certification

Applications

• Cooling circuit monitoring
• Filling volume monitoring
• Monitoring for leaks and line breaks
• Process water monitoring
