MFH-3-1/2, Festo 3/2 Pneumatic Solenoid Valve - Pilot G 1/2 MFH Series, 9857, Клапан

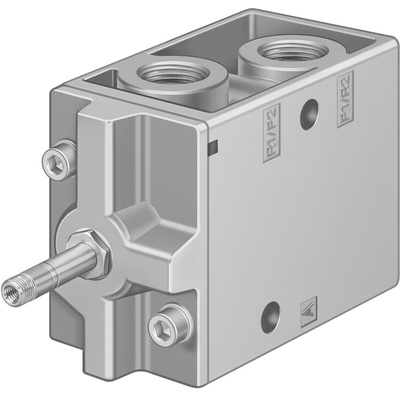

Festo Pneumatic Solenoid Pilot Valve, 3/2, G 1/2 Thread - MFH Series - MFH-3-1/2

This Festo 3/2 pilot valve uses an integrated solenoid coil to control the flow of compressed air in a pneumatic system. It has a maximum flow rate of 3700 l/min and an operating pressure range from 1.5 to 8 bar. The die-cast aluminium housing provides durability and resistance to corrosion, to ensure a long product life. You can use this product in a variety of automation and control applications such as automatic irrigation systems, central heating or brewing equipment.

Features and Benefits

• Pilot actuation type
• G1/2 connection port thread
• 3 ports
• 2 positions
• Valve function of 3/2, normally closed
• Maximum flow rate of 3700 l/min
• Operating temperature range of -5°C to +40°C

Range Information

• The MFH Series is Festo's range of solenoid/pneumatic valves designed to meet all industrial needs
• Includes sturdy and reliable components with a long service life assured
• Valves can be either electrically or pneumatically actuated
• Option of internal or external air-piloting
• Pipe thread in sizes G 1/8, G 1/4, G 1/2 and G 3/4
• 3/2 and 5/2-way valves available

Certifications

• ISO8573-1:2010
• UL listed
• IP65 rated

Datasheet

MFH-3-1/2 Specification Sheet
