RS PRO 4 Pole M12 Plug to 4 Pole M12 Socket Adapter

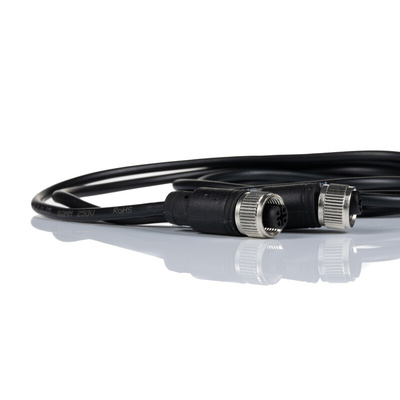

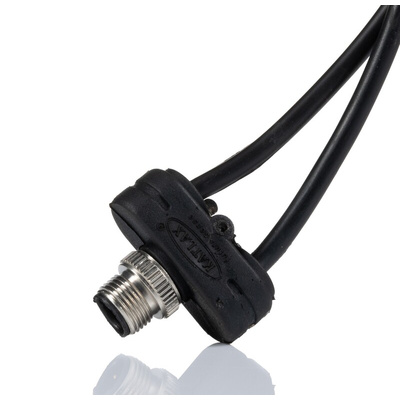

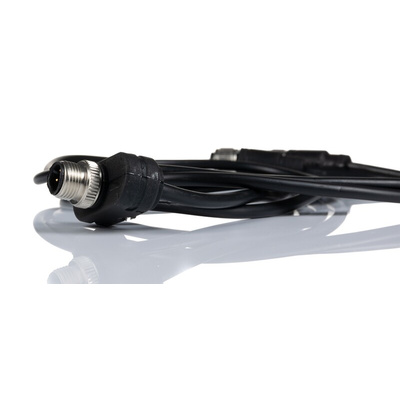

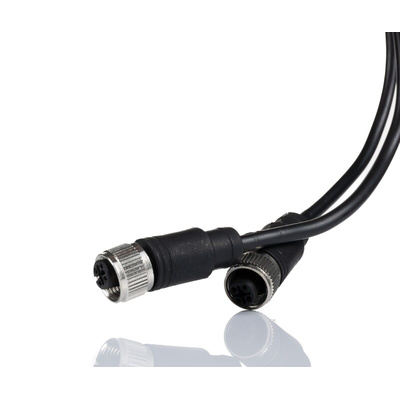

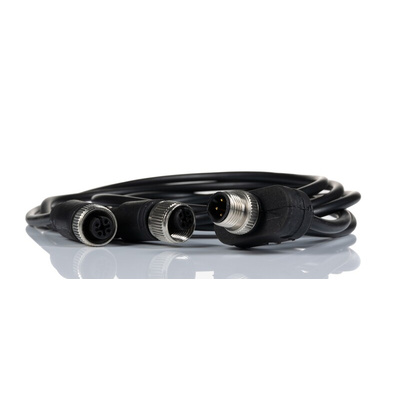

RS PRO M12 Male to Female 2 Way Cable Splitter (1m)

A high-quality and durable M12 Y splitter with one male ended and 2 female M12 connectors.
Constructed from TPU (Thermoplastic Polyurethane) the M12 splitter cable is tough, flexible, and resistant to both grease and oil. The contacts are manufactured from Brass with a gold coating for a consistent level of conductivity and the contact housing is created from impact resistant Nylon 6.
The result is a hardwearing 2 way M12 cable splitter that will stand up to the knocks and demands of the industrial environment. Perfect for automation applications.

Features and benefits

• Y splitter


• 1 x M12 male to 2 x M12 female (4 pin)


• Voltage rated to 250V


• Current rating of 4A


• Insulation resistance of ≥108Ω


• Operating temperature range of -25 to +85°C


• TPU cable length of 1m


• IP67 rated


• Gold plated Brass contacts


• Impact resistant Nylon housing

Standards and Approvals: IEC 61076-2 101
