88975001, Crouzet Millenium Evo Series PLC CPU for Use with PLC, Relay Output, 16 (Digital)-Input, Digital Input, ПЛК

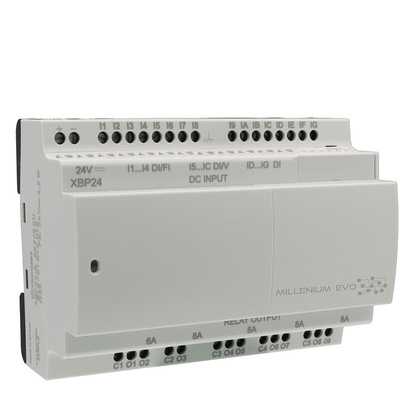

Crouzet XBP24 PLC CPU

The Crouzet XBP24 PLC CPU is a high-performance logic controller with up to 44 I/Os. It has a wireless programming system and an event and datalog management via mail/FTP server or locally. Up to 1000 programming blocks with intuitive Crouzet soft go from simple to complex applications. The service temperature ranges between -20°C and 60°C.

Features and Benefits

• 2k octet programming capacity
• Battery backup
• Control with Bluetooth interface
• Digital input
• DIN Rail mounting
• FDB and SFC programming languages used
• Number of inputs is 16
• Number of outputs is 8
• Only one communication port
• Output current is 6A
• Output type relay

Certifications

• CE, cULus Listed
• IEC/EN 60664-1: 4 kV
• IEC/EN 60947-1
• IEC/EN 61000-6-1 (Residential, commercial and light-industrial environments)
• IEC/EN 61000-6-2 (Industrial)
• IEC/EN 61000-6-3 (Residential, commercial and light-industrial environments)
• IEC/EN 61000-6-4 (Industrial)
• IEC/EN 61131-2 (Open equipment)
• IP20 rated on terminal block
• IP40 rated on front panel

Datasheet

Crouzet Recycling Notice
