88975901, Crouzet Millenium Evo Series PLC CPU Starter Kit for Use with PLC, Relay Output, 16 (Digital)-Input, Digital Input, Стартовый комплект

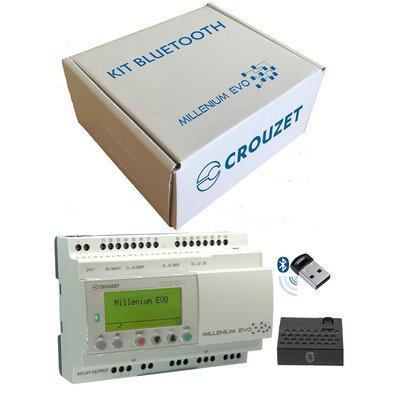

Crouzet XDP24 PLC CPU Starter Kit

The Crouzet XDP24 PLC CPU starter kit is a high- performance logic controller. It has a wireless programming system and an event and datalog management via mail/FTP server or locally. Up to 1000 programming blocks with intuitive Crouzet soft to go from simple to complex applications. The service temperature ranges between -20°C and 60°C.

Features and Benefits

• 2k octet data memory
• Battery backup
• Control with Bluetooth interface
• Digital input
• FDB and SFC programming languages used
• Number of inputs is 16
• Number of outputs is 8
• Output current is 6A
• Output type relay

Certifications

• CE, cULus Listed
• IEC/EN 61000-6-1 (Residential, commercial and light-industrial environments)
• IEC/EN 61000-6-2 (Industrial)
• IEC/EN 61000-6-3 (Residential, commercial and light-industrial environments)
• IEC/EN 61000-6-4 (Industrial)
• IEC/EN 61131-2 (Open equipment)
• IP20 rated on terminal block
• IP40 rated on front panel
