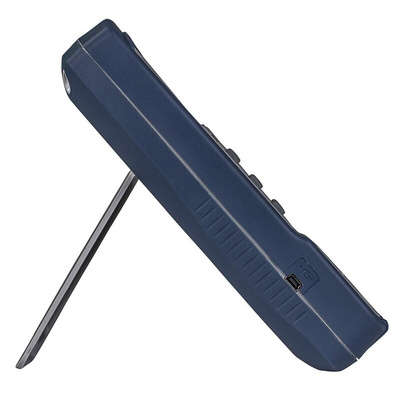

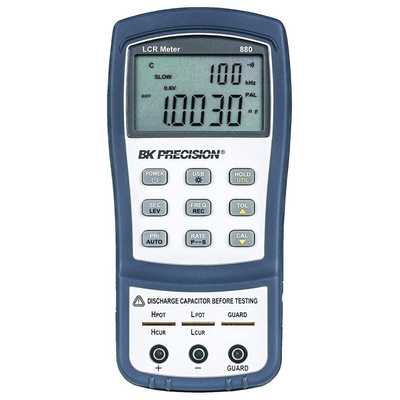

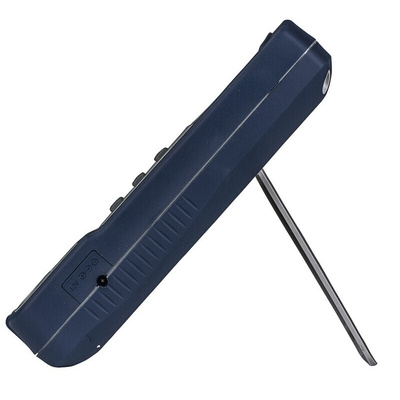

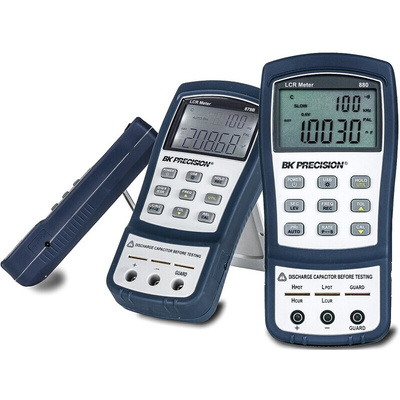

BK Precision BK880 Handheld LCR Meter 20mF, 10 MΩ, 1000H, LCR-метр

The model 880 40,000-count handheld LCR meters measures inductance, capacitance, and resistance quickly and precisely. Additionally, the 880 also measures impedance, Theta, and ESR, features typically only found in bench LCR meters. Additionally, the 880 offers capabilities typically only found in bench LCR meters such as a 4-terminal configuration, basic measurement accuracy up to 0.1%, test frequencies up to 100 kHz, and selectable test signal levels.

40,000 counts resolution on primary and 10,000 counts resolution on secondary display
L, C, R, and Z primary measurements
Automatic calculation of secondary parameters D, Q, Theta, ESR, and DCR
Accuracy up to 0.1% and selectable test frequencies up to 100 kHz
Fast auto range design for rapid, easy component measurements
Visible and audible tolerance mode
Backlit display
Data Hold and Min/Max/Average recording

Datasheet - BK Precision 878B, 879B, 880

Instruction Sheet
