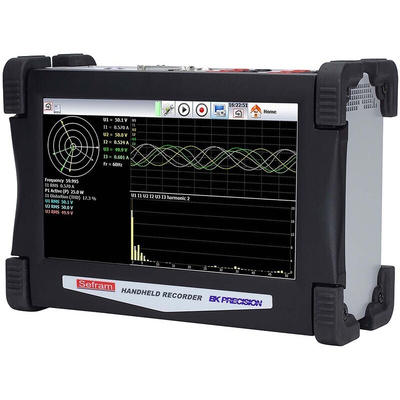

Sefram DAS60 Data Acquisition, 6 Channel(s), Ethernet, USB, 1Msps, 14 bit, Устройство сбора данных

Sefram Data Acquisition

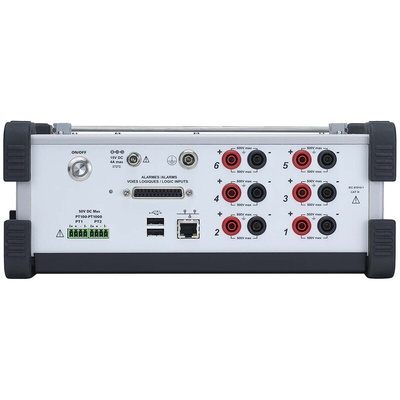

The Sefram data acquisition solution has a sampling rate of 2Msps with 6 isolated channels, 16 logical inputs and 2 Pt100/Pt1000 inputs. It has a special function of power analysis, which can record all your parameters on a Single-Phase and Three-Phase network up to 400Hz.

Features and Benefits

100kHz bandwidth

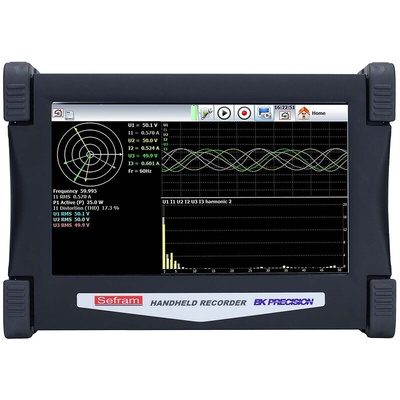

10in TFT panoramic LCD touch screen
110mm Thermal printer module
14-bit resolution
16 logical channels
32 word memory
64GB internal hard disk
Autonomy: up to 9.5 hours
Interfaces: 2 x USB, Ethernet

Applications

Maintenance/failure diagnostic on electrical systems
Power analysis for single-phase and three-phase systems
voltage, current, temperature recording and monitoring

Certifications

IEC 1010 CAT III 600V

Options

2320453 : WiFi option
7918071 : External 16 isolated logical channel adapter
1259523 : Special cord for logic inputs (banana)

Note

DAS60 Models:
DAS60: 1752549 - Impedance 1MΩ
DAS60P: 2506419 - Printer and Impedance 1MΩ
DAS60Z: 1752550 - High Impedance 10MΩ
DAS60PZ: 1752552 - Printer and High Impedance 10MΩ

Supplied with
type":"Supplied with",

Included: main adaptor 100/240V, manual (CD-ROM), rugged carrying case, set of red and black cables, aligator clips, quick banana plug

Datasheet - DAS60

User Manual - DAS60

Quickstart Guide - DAS60

UN38.3 Lithium Battery Test Summary
