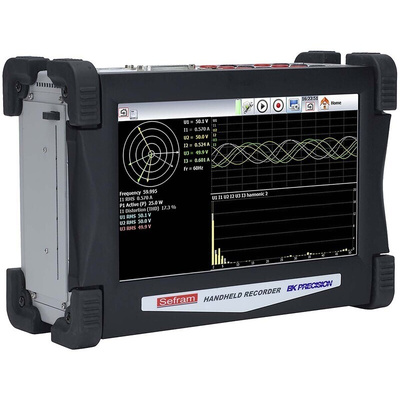

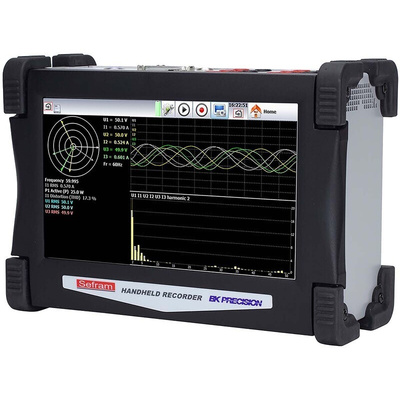

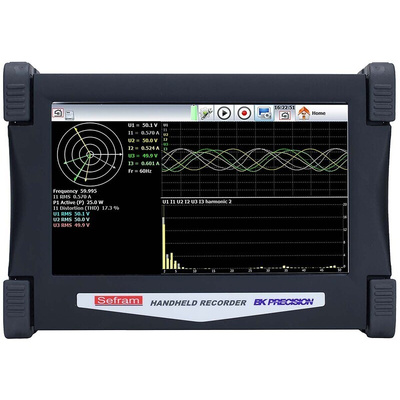

DAS60PZ, Sefram DAS60 Data Acquisition, 6 Channel(s), Ethernet, USB, 1Msps, 14 bit, Устройство сбора данных

The new Data Acquisition Solution DAS60 is part of the family of standalone, portable, battery operated instruments dedicated to high-speed recording. With 6 isolated channels, 16 logical inputs, 2 Pt100/Pt1000 inputs, more than 9 hours autonomy, a 64GB memory, the DAS60 is the ideal tool for R&D, diagnostic and maintenance. With a special function of Power Analysis, you can record all your parameters on a Single-Phase and Three-Phase network up to 400Hz.

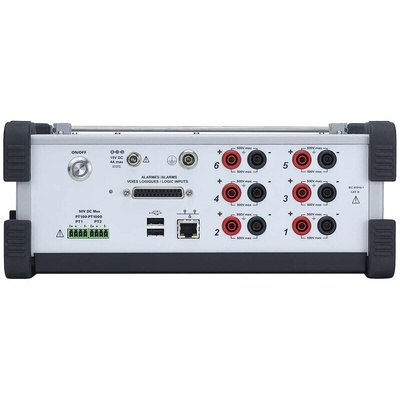

6 analogue isolated channels
Universal input
DC, AC+DC RMS voltage measurement
Frequency, counter
Temperature: thermocouple, Pt100/Pt1000 (2 separate channels)
Network and power analysis function (up to 400Hz) with trigger on parameters
Inrush current measurement
PWM measurement
64 GB internal hard disk
32 Mword memory

Options

2320453 : WiFi option
7918071 : External 16 isolated logical channel adapter
1259523 : Special cord for logic inputs (banana)

Note

DAS60 Models:
DAS60: 1752549 - Impedance 1MΩ
DAS60P: 2506419 - Printer and Impedance 1MΩ
DAS60Z: 1752550 - High Impedance 10MΩ
DAS60PZ: 1752552 - Printer and High Impedance 10MΩ

Supplied with
type":"Supplied with",

Included: main adaptor 100/240V, manual (CD-ROM), rugged carrying case, set of red and black cables, aligator clips, quick banana plug

Datasheet - DAS60

User Manual - DAS60

Quickstart Guide - DAS60

UN38.3 Lithium Battery Test Summary
