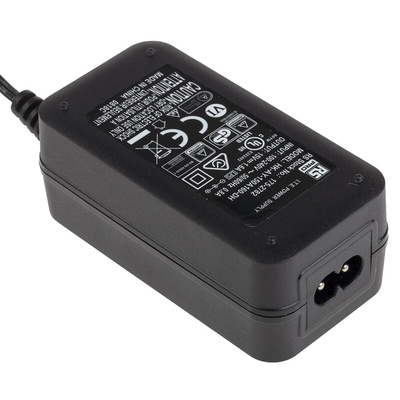

RS PRO 24W Plug-In AC/DC Adapter 15V dc Output, 1.6A Output, Блок питания

RS PRO Power Supply

The RS PRO is a 15V high-quality adapter. This range of switch-mode power supply provides 24W of continuous output power in a high-quality compact enclosure suitable for many general power applications. It has an input frequency of 47Hz to 63Hz. The input voltage range is 90V to 264VAC (wide range). The maximum input current is 800mA. It gives an efficiency of 86.2%. The output is fully regulated. Most importantly, it is short circuit protected. It is a reliable product due to high MTBF. The plug type is 2-pin IEC. It has thermal protection of latching type. The overall cable length of this desktop power supply is 87.6mm. It has a low power consumption of less than 0.10W.

Features and Benefits

• Universal AC input
• EN61000-3-2 compliant
• Overcurrent and overvoltage protection
• High-efficiency
• High MTBF
• Operating temperature ranges between 0°C and 40°C

Applications

• Information technology equipment (ITE) commercial
• Laptops and CCTV cameras
• Networking and peripherals
• Gaming machines

Certifications

• CCC
• CE
• CULus
• FCC
• TUV
• UL
